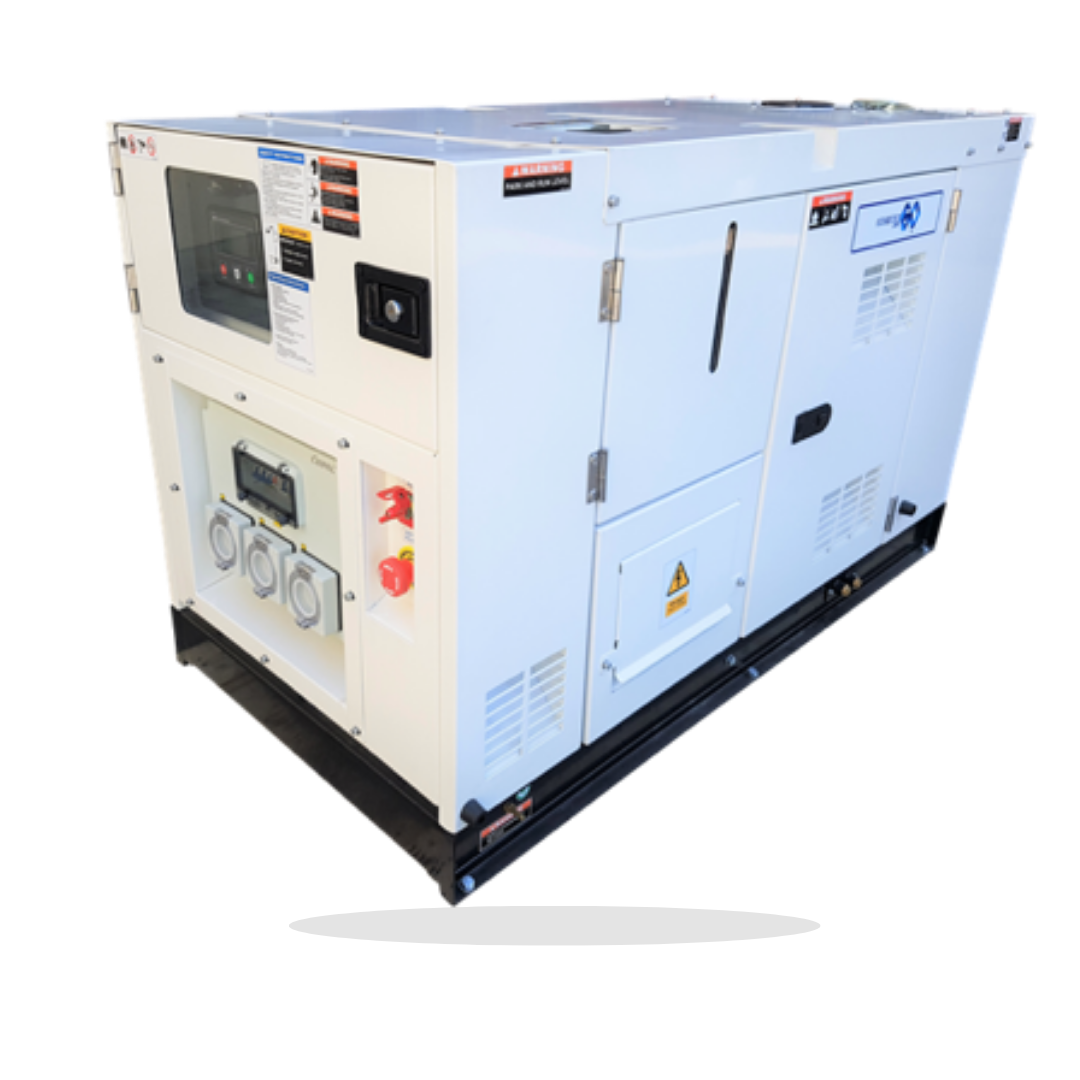

11 kVA Kubota Diesel Generator | Silenced, Single Phase

Download Datasheet Here

PRE-ORDER NOW IN TIME FOR STORM SEASON...

Power your site, home, or business with this reliable 11 kVA standby / 10 kVA prime diesel generator, built around a proven Kubota engine and housed in a weatherproof, sound-attenuated canopy. Designed for dependable backup or continuous single-phase power, this unit combines industrial-grade components with a compact footprint.

Key Features

• Kubota D1505-E2BG engine – naturally aspirated, 3-cylinder, 1.123 L diesel engine known for durability and fuel efficiency
• Deep Sea 6120MKIII auto start controller – automatic mains failure (AMF) capability with generator sensing, configurable digital/analogue inputs and DC outputs
• Bunded fuel tank – 10-hour running capacity with integrated spill containment for safe, compliant operation
• Sound-attenuated, weatherproof enclosure – fan-protected to 50°C ambient, suitable for outdoor installation
• Self-excited alternator – SLG185 alternator with AVR voltage regulation (±1%) for stable power output
• MCCB circuit protection and outlet options included

Genset Specifications

• Voltage: 240 V
• Current: 26 A
• Phase: Single
• Power Factor: 0.8
• Frequency: 50 Hz
• Speed: 1500 rpm

Engine Details

• Model: Kubota D1505-E2BG
• Power: 9.5 kW
• Aspiration: Naturally aspirated
• Displacement: 1.123 L
• Bore x Stroke: 78 x 74.4 mm
• Cylinders: 3, in-line
• Compression Ratio: 22:1
• Governor Type: Mechanical
• Starting: 12V electric start
• Battery: 1 x 60 Ah

Alternator Details

• Model: SLG185
• Bearing: Single bearing
• Winding Pitch: 2/3
• Connection: 3-phase, 4-wire
• Protection Class: IP23
• Insulation Class: H
• Excitation System: Self-excited
• AVR Type: R220
• Voltage Adjustment: ±1%
• TIF: <50
• THF: <2%

Fuel System

• Tank Capacity: 10 hours run time
• Tank Type: Bunded (spill-contained)
• Fuel Consumption (Standby): 3.5 L/hr
• Fuel Consumption (Prime): 2.9 L/hr

Lubrication & Cooling

• Lube Oil Capacity: 5.1 L
• Coolant Capacity: 6.4 L
• Cooling Method: Water-cooled
• Fan Type: Pusher fan

Configuration & Control

• Radiator: Fan-protected to 50°C
• Enclosure: Sound-attenuated / weatherproof canopy
• Fuel Tank: Bunded base frame
• Circuit Breaker: MCCB
• Options: Additional outlets available
• Auto Start Control: Deep Sea 6120MKIII — generator sensing, 2 configurable DC outputs, configurable analogue and digital inputs

Weight & Dimensions

• Weight: 510 kg
• Dimensions (L x W x H): 1550 mm x 680 mm x 1082 mm

Certifications

Manufactured to ISO8528, ISO4000, ISO8016, GB765, IEC60034, VDE0630, and IEC34-1 standards.
