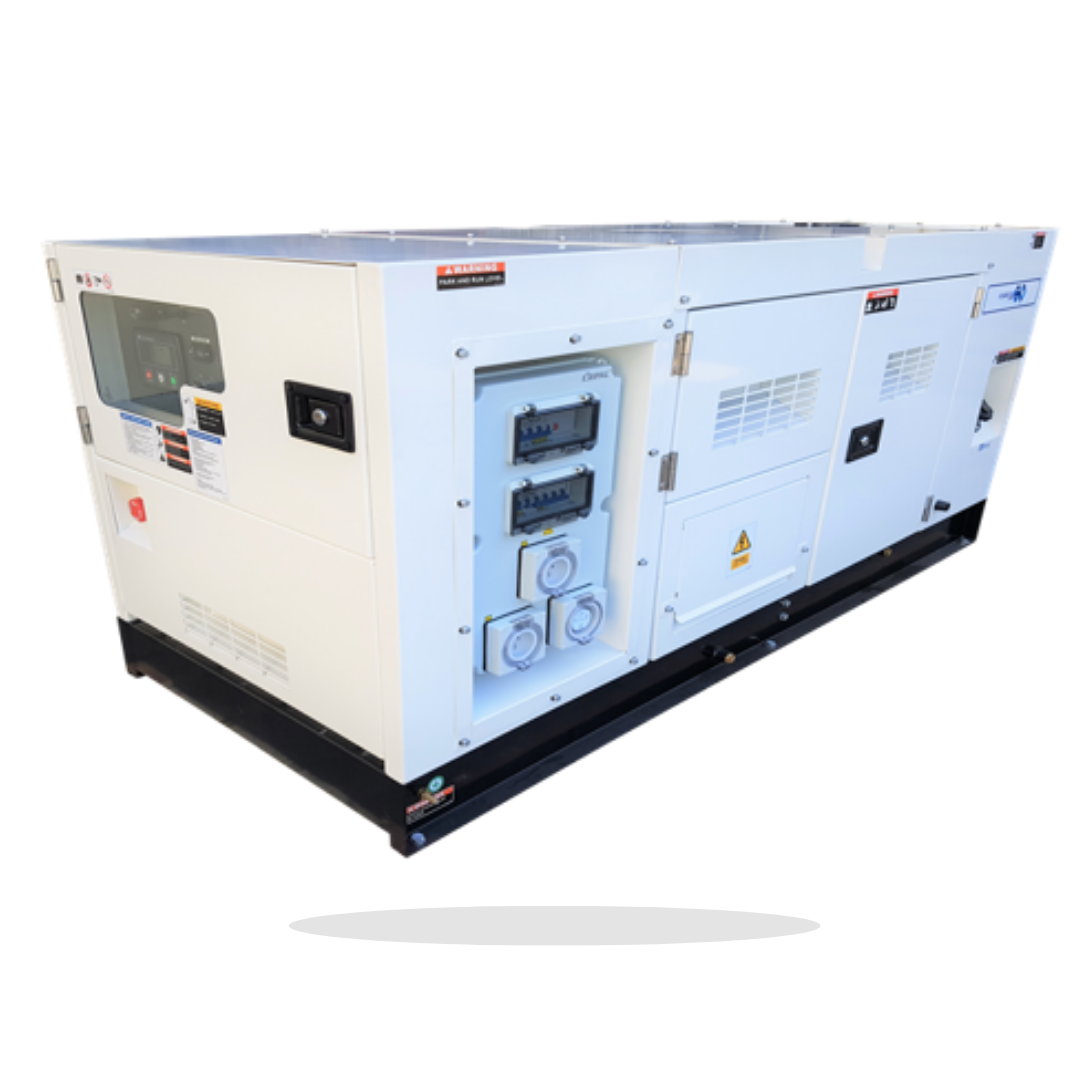

22 kVA Kubota Diesel Generator | Silenced, Single Phase

Download Datasheet Here

PRE-ORDER NOW IN TIME FOR STORM SEASON...

Get serious standby or continuous power with this 22 kVA standby / 20 kVA prime diesel generator. Built around a heavy-duty Kubota engine and housed in a weatherproof, sound-attenuated canopy, this unit suits larger residential properties, commercial sites, and industrial applications that demand dependable single-phase power.

Key Features

• Kubota V3300-E2BG2 engine – naturally aspirated, 3-cylinder, 2.2 L diesel engine delivering strong, dependable power
• Deep Sea 6120MKIII auto start controller – automatic mains failure (AMF) capability with generator sensing, configurable digital/analogue inputs and DC outputs
• Bunded fuel tank – 10-hour running capacity with integrated spill containment for safe, compliant operation
• Sound-attenuated, weatherproof enclosure – fan-protected to 50°C ambient, suitable for outdoor installation
• Self-excited alternator – SLG184E1 alternator with AVR voltage regulation (±1%) for stable power output
• MCCB circuit protection and outlet options included

Genset Specifications

• Voltage: 240 V
• Current: 91 A
• Phase: Single
• Power Factor: 0.8
• Frequency: 50 Hz
• Speed: 1500 rpm

Engine Details

• Model: Kubota V3300-E2BG2
• Power: 16 kW
• Aspiration: Naturally aspirated
• Displacement: 2.2 L
• Bore x Stroke: 87 x 92.4 mm
• Cylinders: 3, in-line
• Compression Ratio: 23:1
• Governor Type: Mechanical
• Starting: 12V electric start
• Battery: 1 x 60 Ah

Alternator Details

• Model: SLG184E1
• Bearing: Single bearing
• Winding Pitch: 2/3
• Connection: 3-phase, 4-wire
• Protection Class: IP23
• Insulation Class: H
• Excitation System: Self-excited
• AVR Type: R220
• Voltage Adjustment: ±1%
• TIF: <50
• THF: <2%

Fuel System

• Tank Capacity: 10 hours run time
• Tank Type: Bunded (spill-contained)
• Fuel Consumption (Standby): 5.8 L/hr
• Fuel Consumption (Prime): 5.5 L/hr

Lubrication & Cooling

• Lube Oil Capacity: 9.7 L
• Coolant Capacity: 7.6 L
• Cooling Method: Water-cooled
• Fan Type: Pusher fan

Configuration & Control

• Radiator: Fan-protected to 50°C
• Enclosure: Sound-attenuated / weatherproof canopy
• Fuel Tank: Bunded base frame
• Circuit Breaker: MCCB
• Options: Additional outlets available
• Auto Start Control: Deep Sea 6120MKIII — generator sensing, 2 configurable DC outputs, configurable analogue and digital inputs

Weight & Dimensions

• Weight: 780 kg
• Dimensions (L x W x H): 1900 mm x 750 mm x 1085 mm
