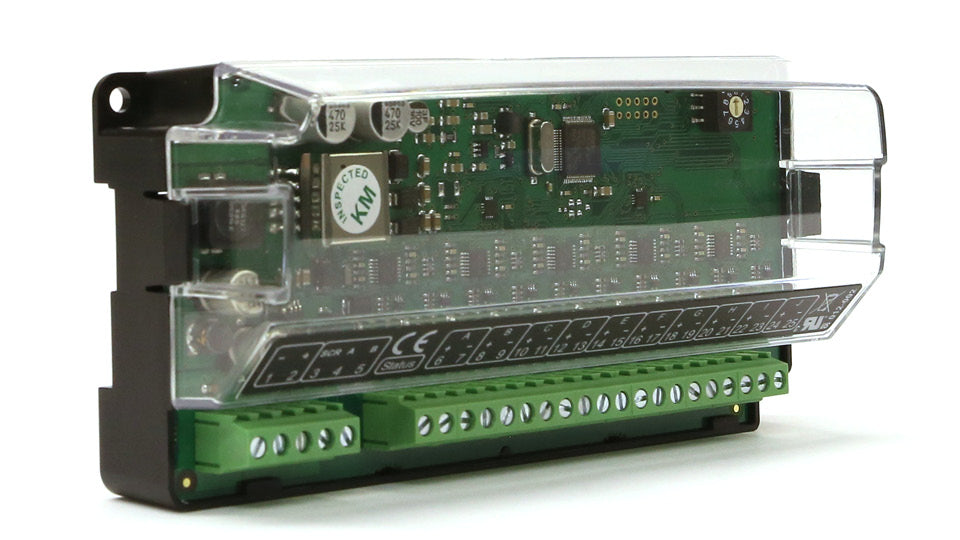

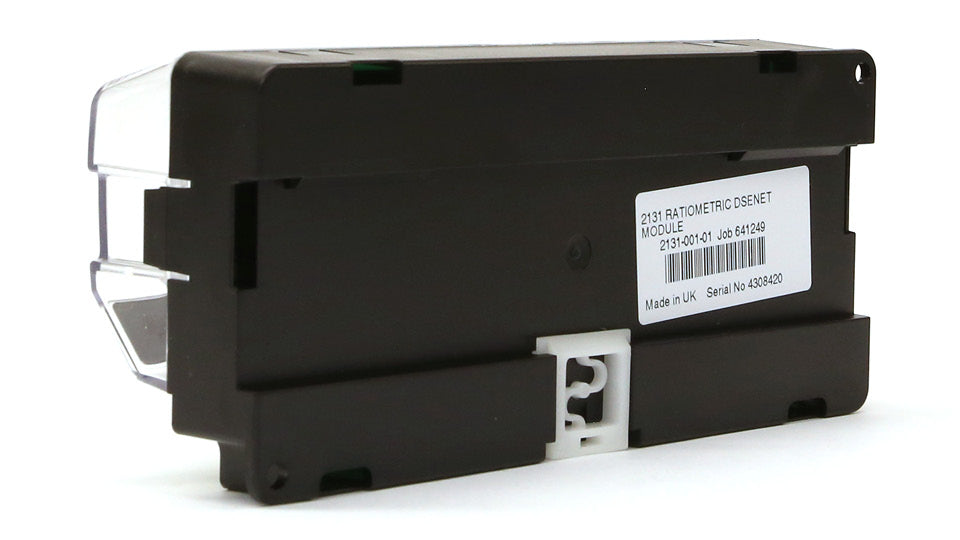

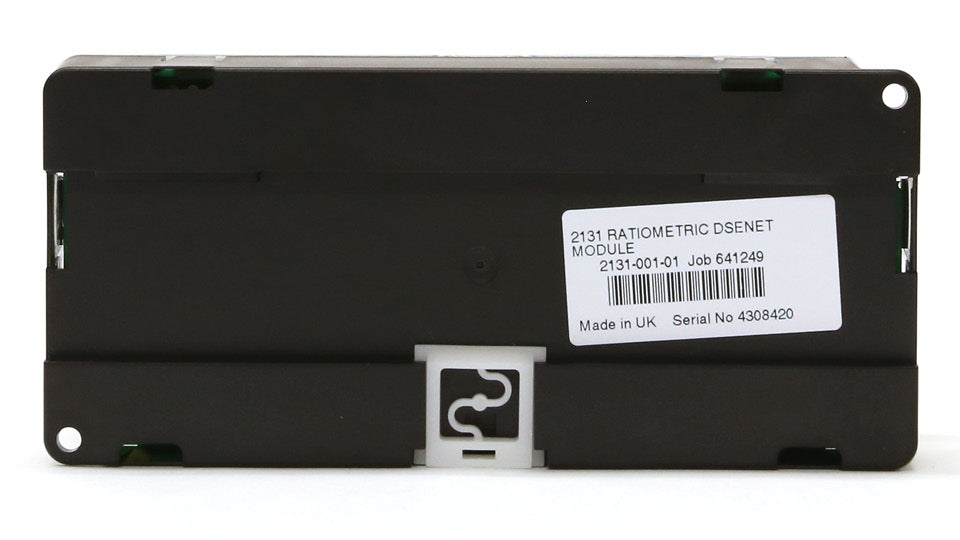

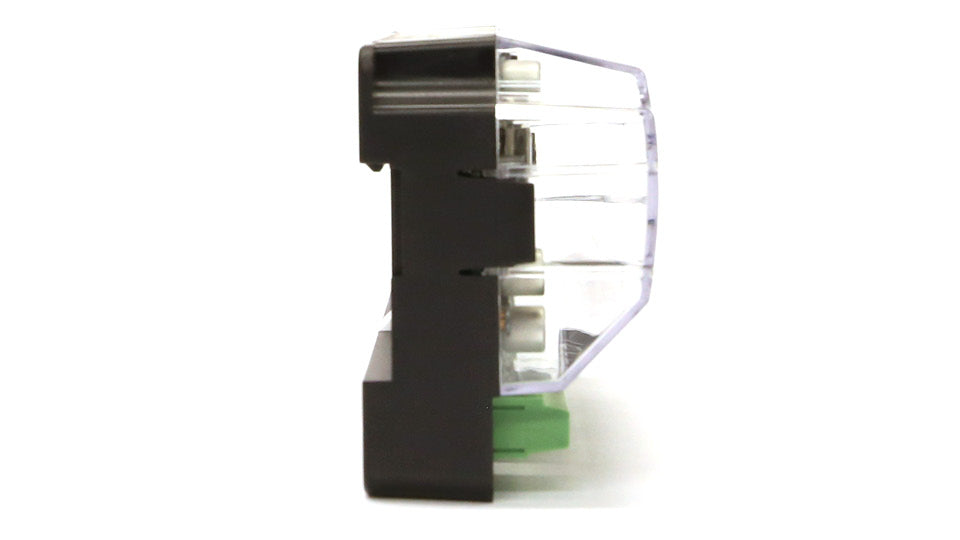

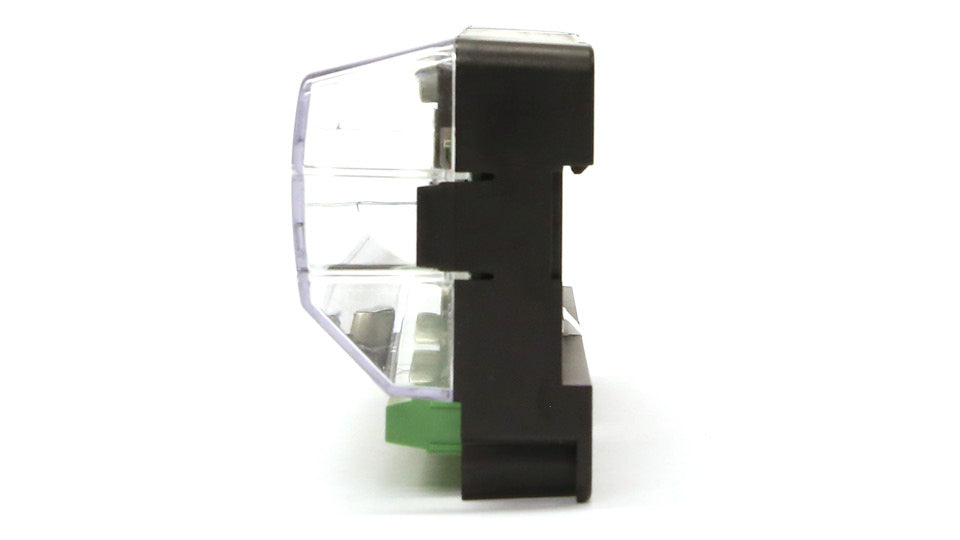

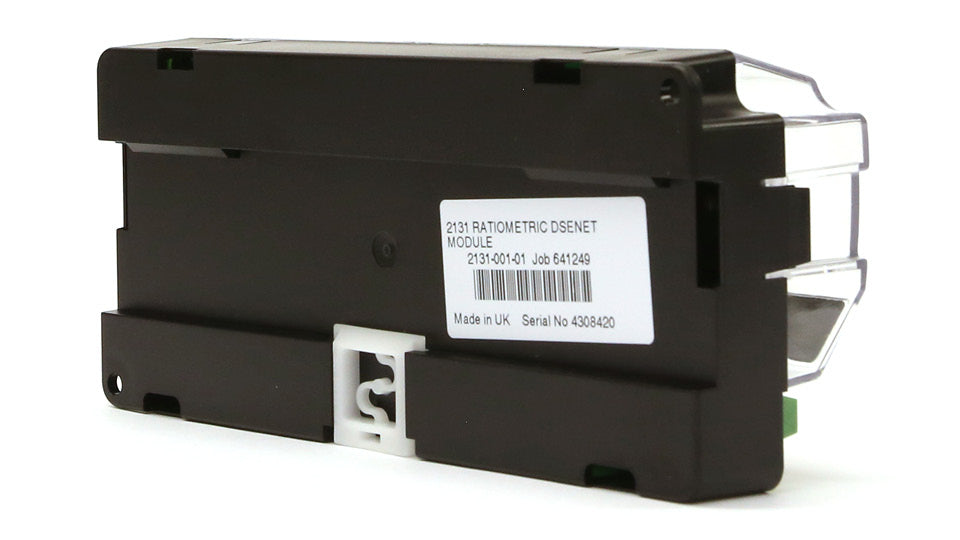

DSENet® Ratiometric Input (10) Expansion Module
The DSE2131 is a ratiometric input expansion module providing 10 additional inputs to the control module. Up to 4 x DSE2131 modules can be linked together to provide up to 40 additional inputs.
Designed to give greater input flexibility for meeting complex industry generator control specifications.
Inputs can be configured to connect to resistive sensors, 0-10 V DC signals or 4-20mA signals, analogue inputs. All configurations are controlled from within the host control module.
To view UL Certification click here.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.22kg
PRODUCT VARIANTS
2131-01 - 2131 Ratiometric Input Expansion Module
DSE2131
Sale price$412.00
Regular price$450.00
