DSE2170

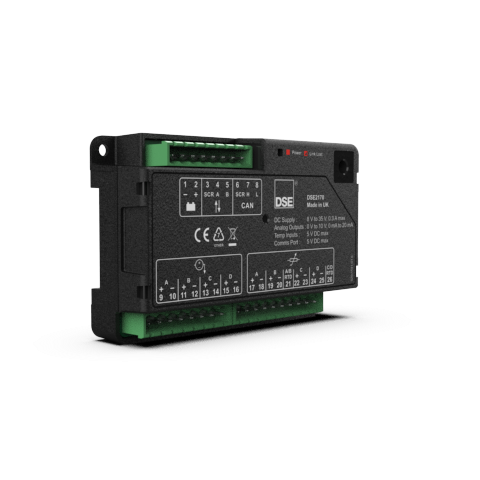

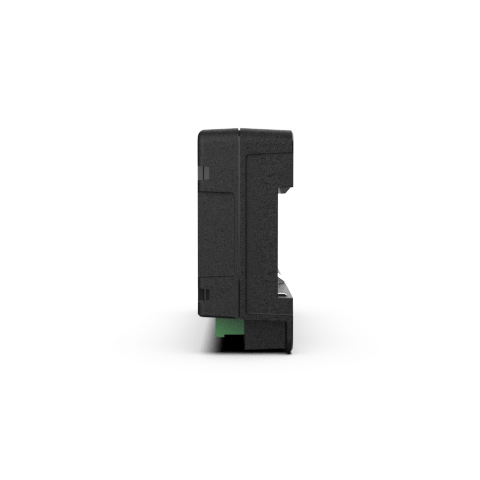

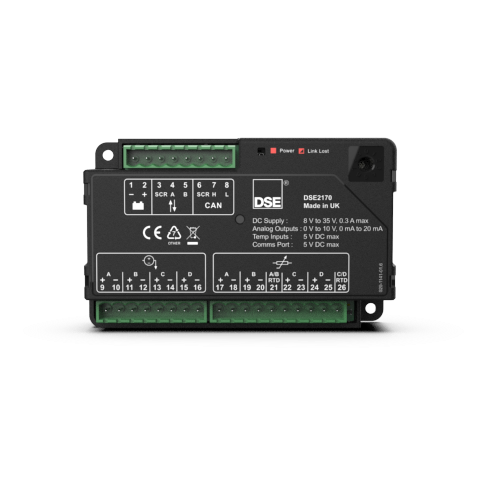

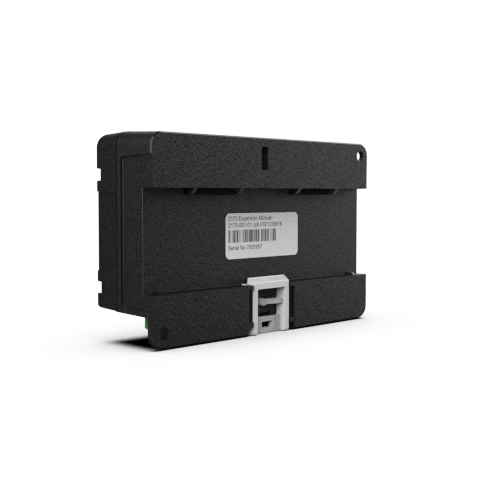

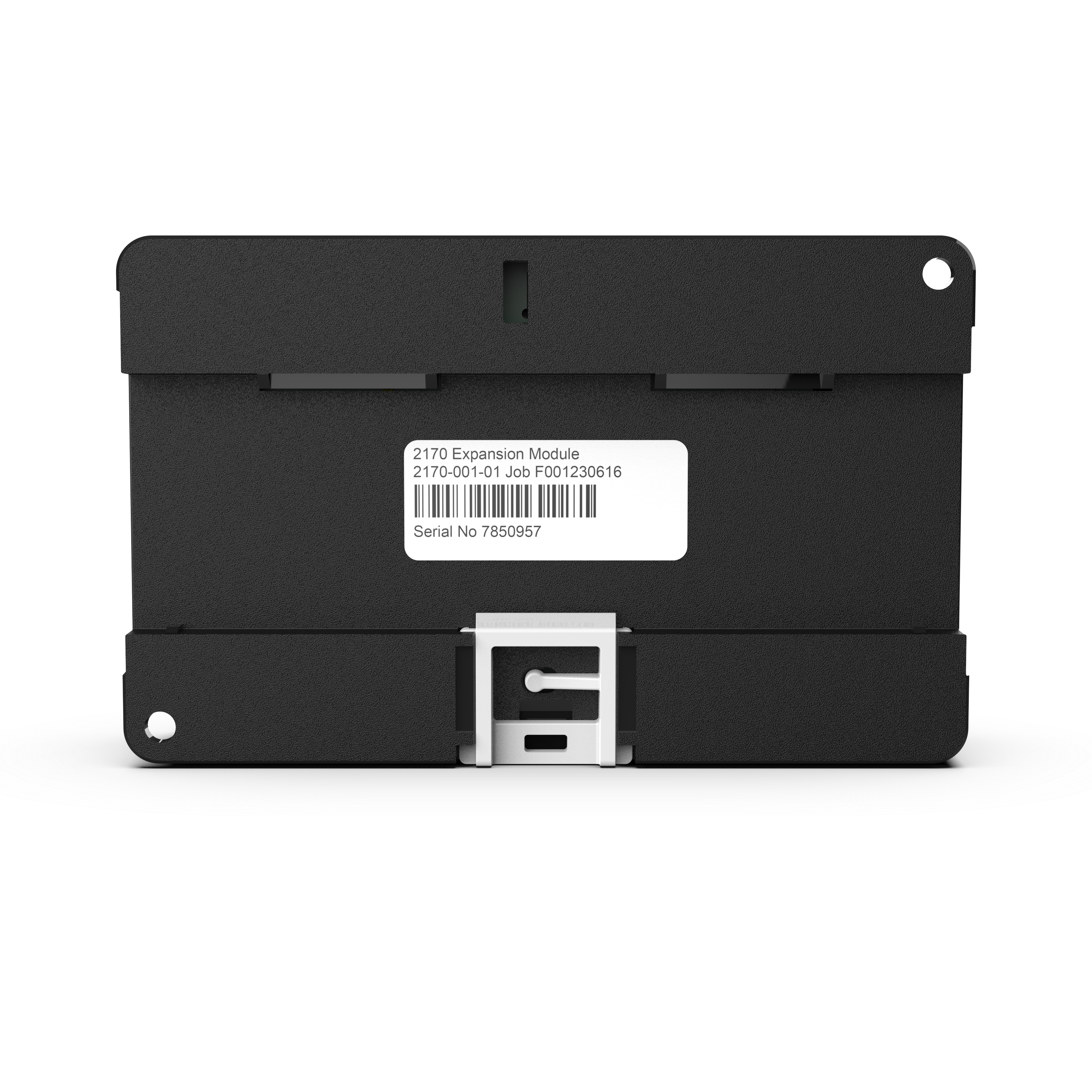

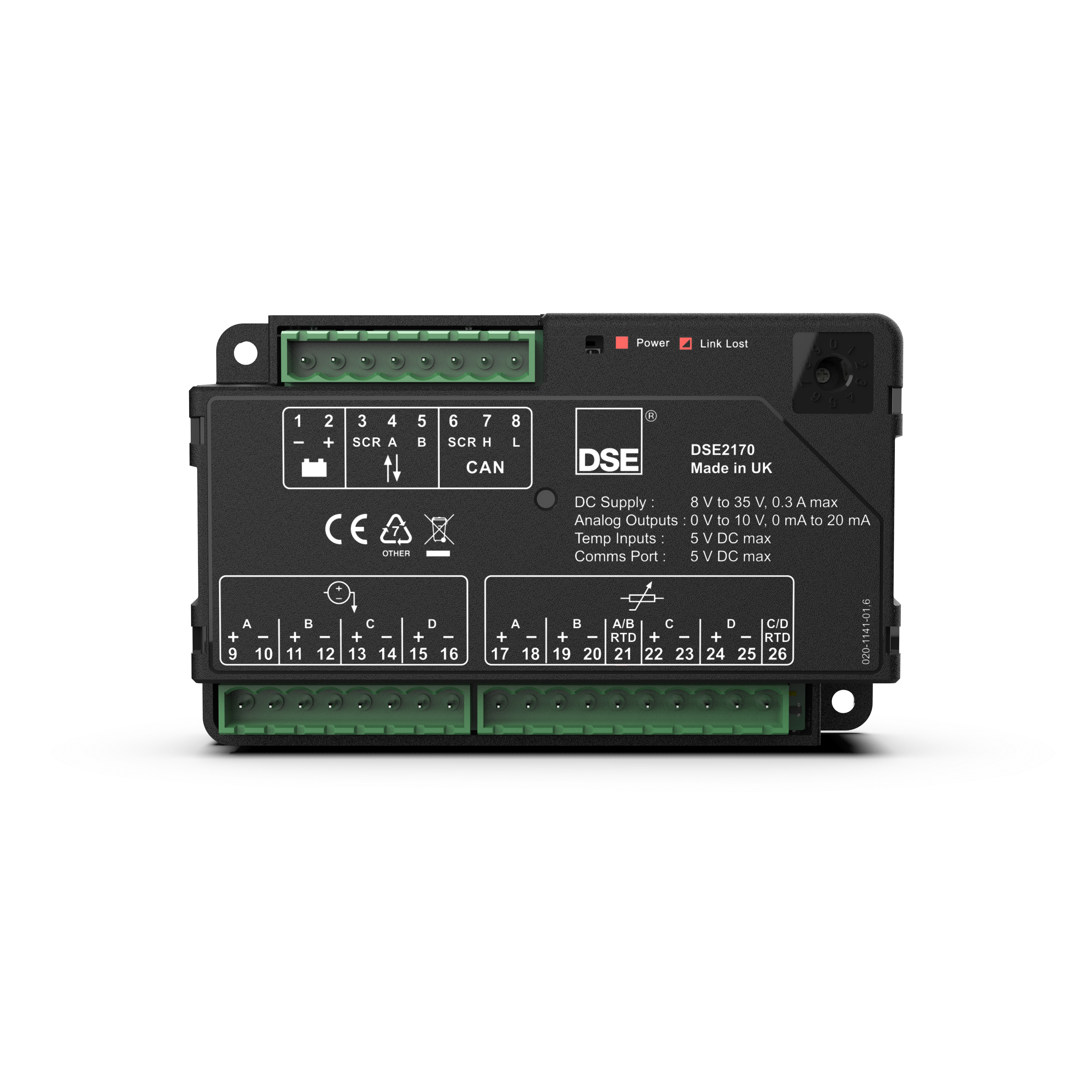

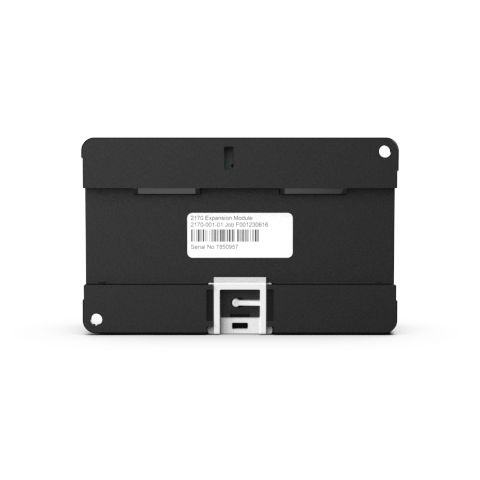

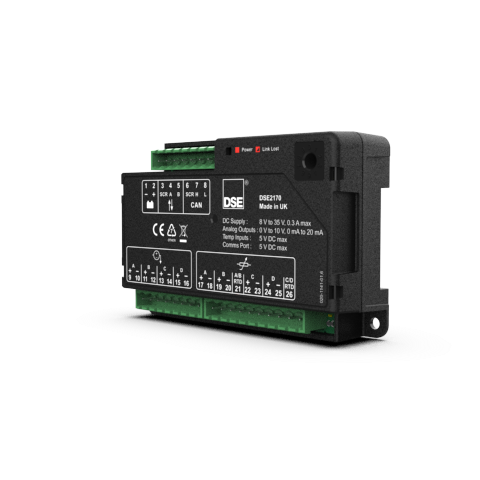

The DSE2170 RTD/Thermocouple Input and Analogue Output Expansion Module has been developed for use with the DSEG8600 platform and DSEM-Series platform. The DSE2170 extends the host modules input and output capabilities for increased application flexibility. This is achieved by providing an additional 4 RTD/thermocouple inputs (configurable as J Type, K Type, L Type, Pt100 or Pt1000) and 4 analogue outputs (configurable as 0 V to 10 V or 0 mA to 20 mA).

For enhanced communication with the host module, the DSE2170 features a DSENet® port for connection to the DSEG8600 platform and a CAN port for connection to the DSEM-Series platform. A red status LED is provided to easily identify when the DSE2170 is connected to a power source and communicating with the host controller.
