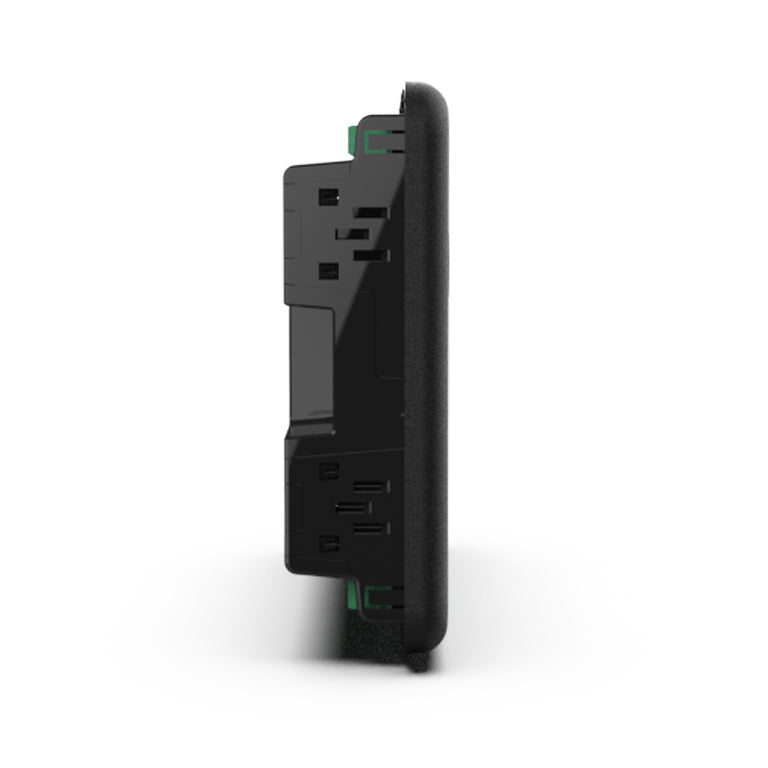

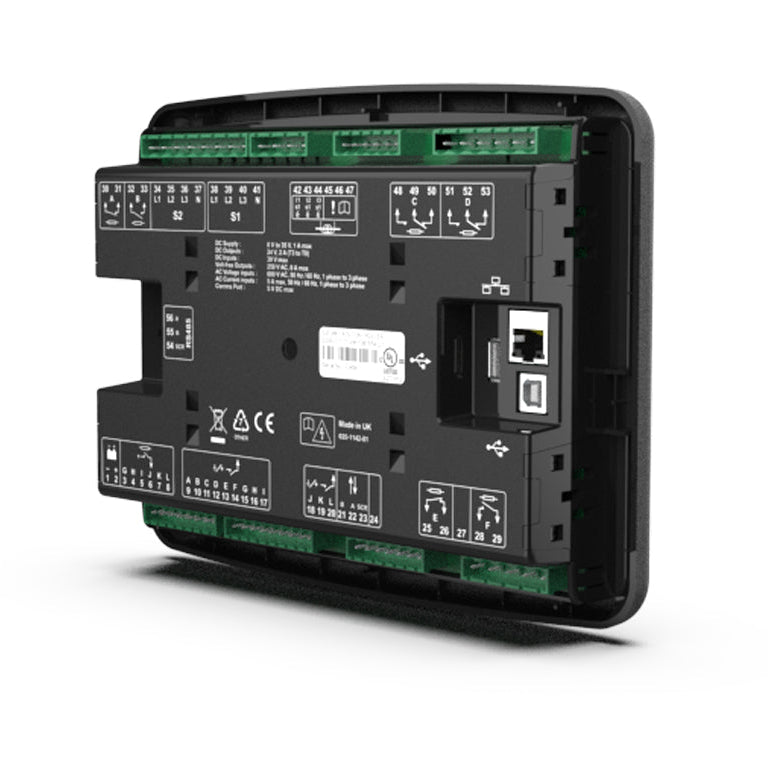

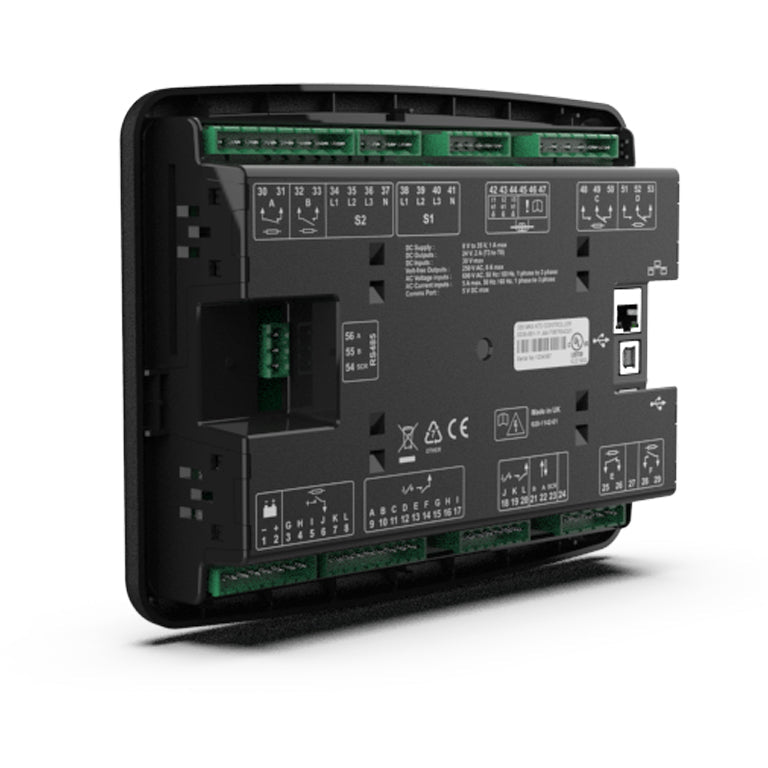

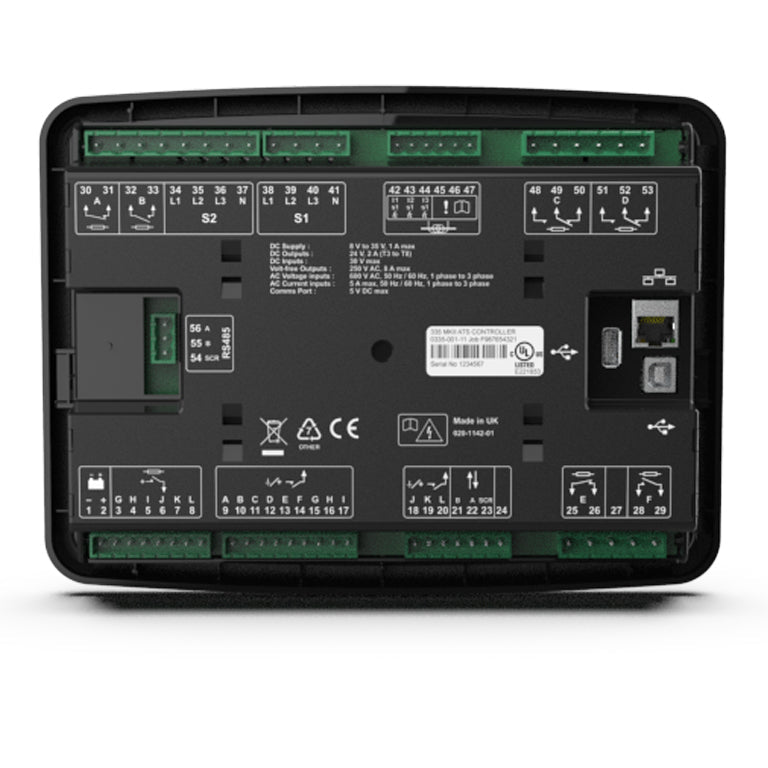

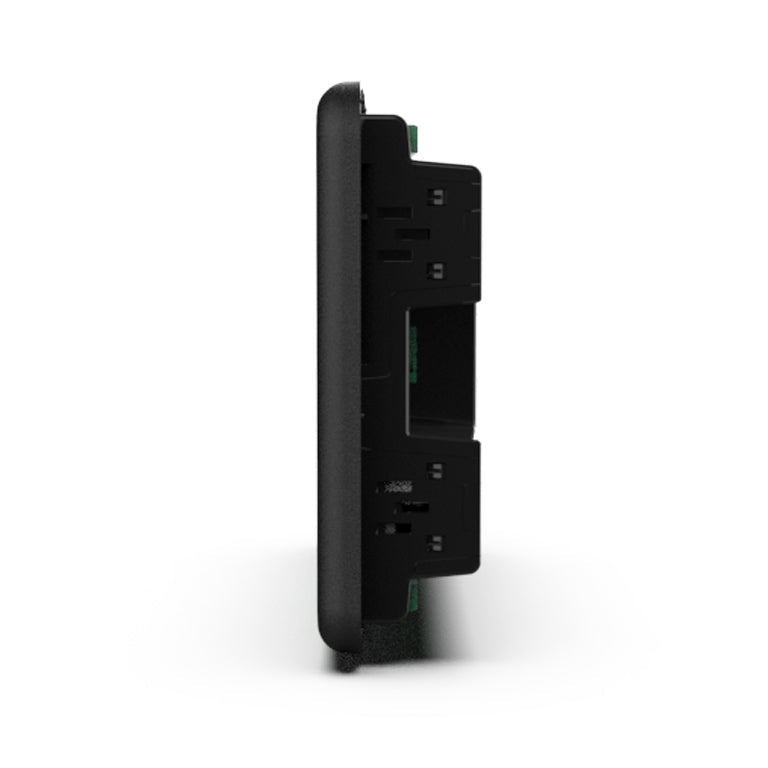

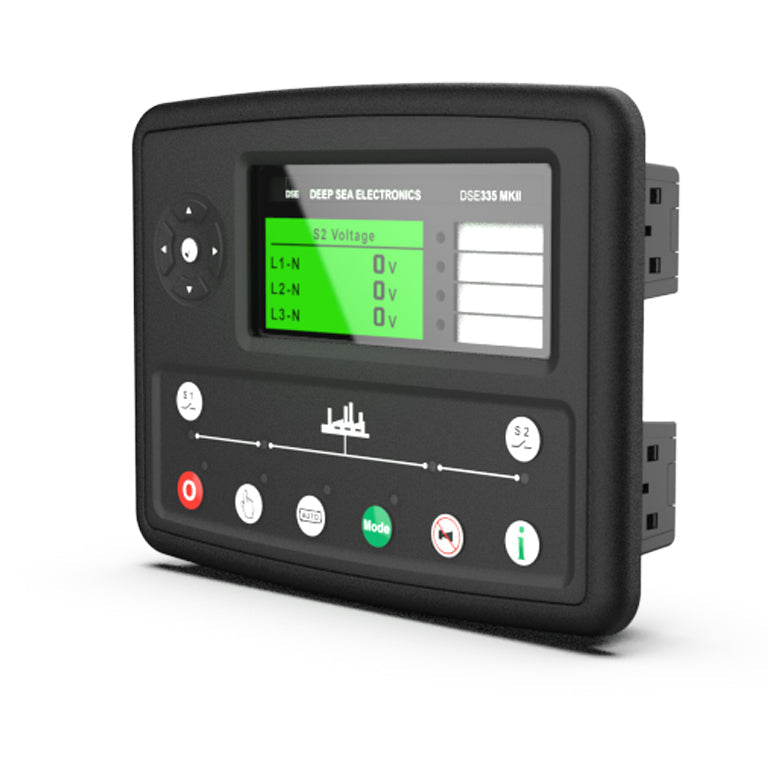

DSE335 MKII
Trusted parts. Fast shipping. Zero downtime.
Ships by
🚚 Fast Shipping
Auto Transfer Switch Control Module
The DSE335 MKII is an automatic transfer switch controller designed to monitor the voltage and frequency of incoming AC supplies from two different sources. These are either generator or mains (utility), or a combination of both. The module monitors S1 (source 1) and in the event of a failure issues a start command to S2 (source 2). Various timing sequences are available to prevent nuisance starting on minor supply breaks.
The module is configured using the DSE Configuration Suite PC Software. Selected front panel editing is also available. Configurable inputs and outputs make the DSE335 MKII fully flexible to suit a wide variety of applications.
OVERALL SIZE
250 mm x 189 mm x 50.5 mm / 9.85 ” x 7.43 ” x 1.99 ”
PANEL CUT-OUT
220 mm x 160 mm (8.66 ” x 6.30 ”)
MAXIMUM PANEL THICKNESS
8 mm (0.3”)
DSE335 MKII
Sale price$1,169.00
Regular price$1,200.00
