DSE9470
24 Volt 10 Amp Intelligent Battery Charger
UL RECOGNISED (USA & Canada) - NFPA 20 (QWIR2) COMPLIANT

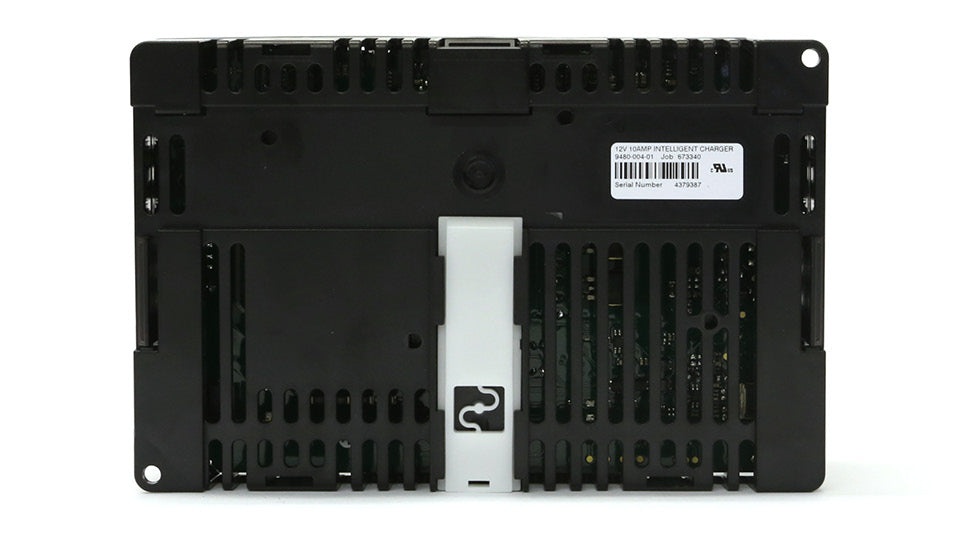

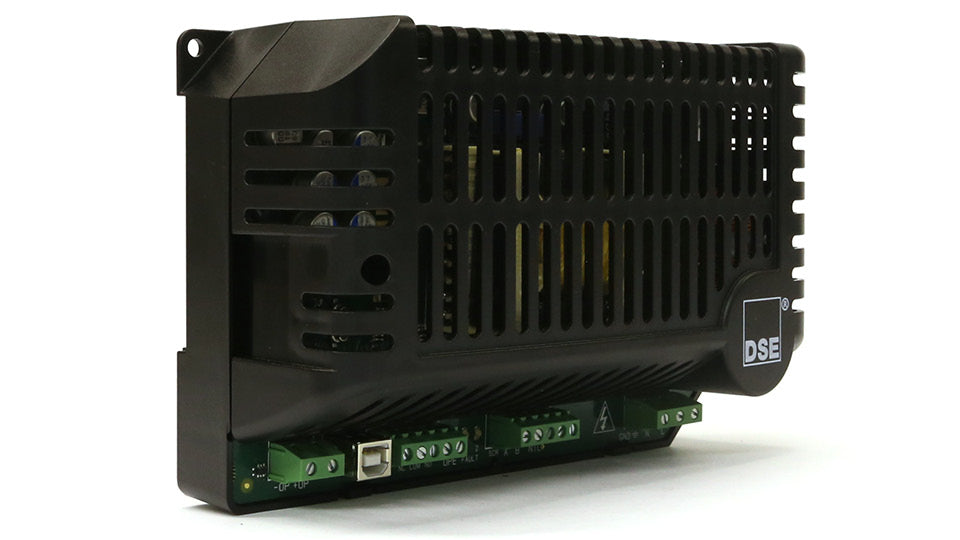

The DSE9470 MKII is a UL recognised intelligent switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.
To view UL Certification click here.
OVERALL SIZE
80 mm x 205 mm x 135 mm (3.1” x 8.0” x 5.3”)
WEIGHT
0.78kg
PRODUCT VARIANTS
9470-01 - 24 V 10 A Intelligent Battery Charger (USA - UL - 110 V - 250 V)
9470-A4 - 24 V 10 A Intelligent Battery Charger (USA & Canada - UL - 110 V - 150 V)
