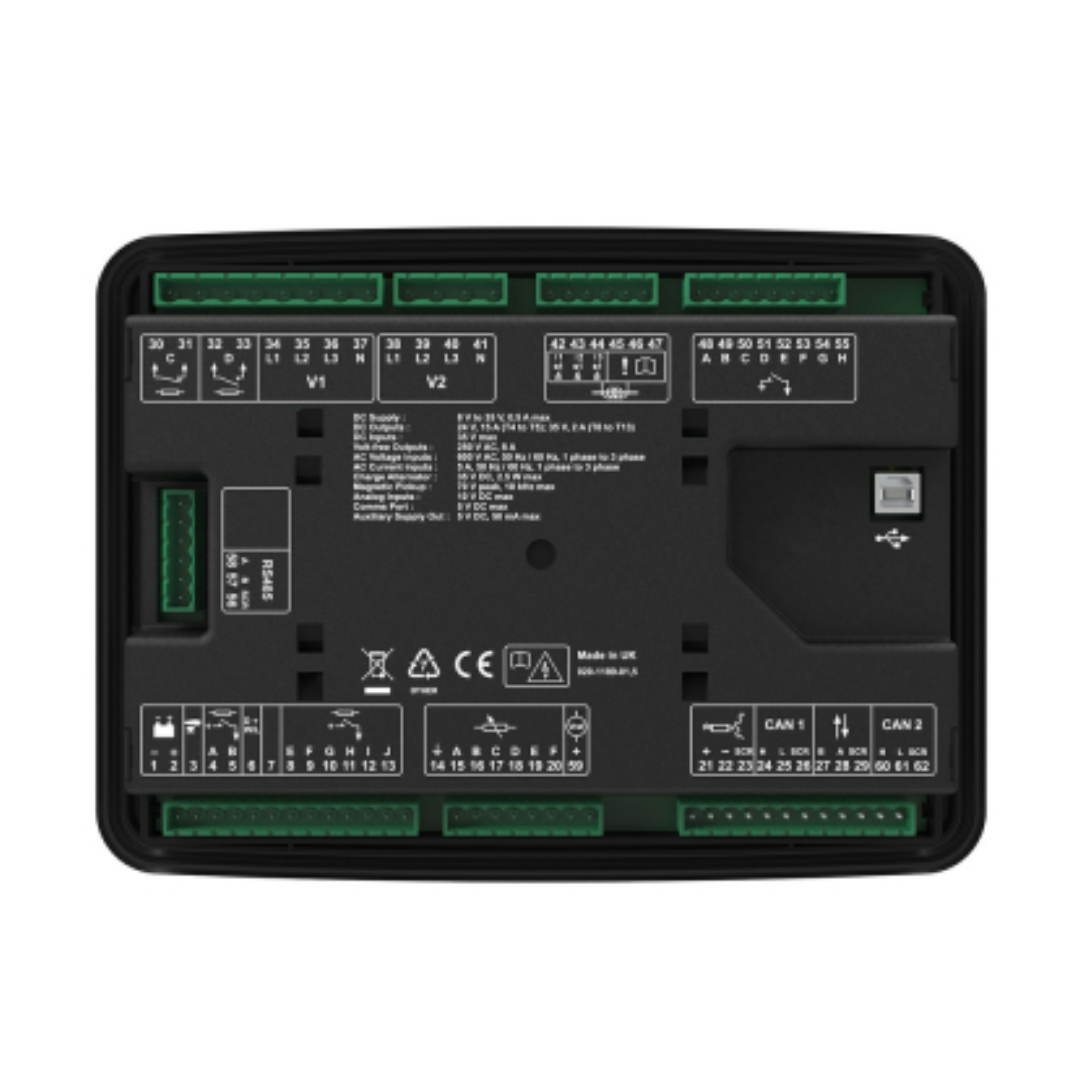

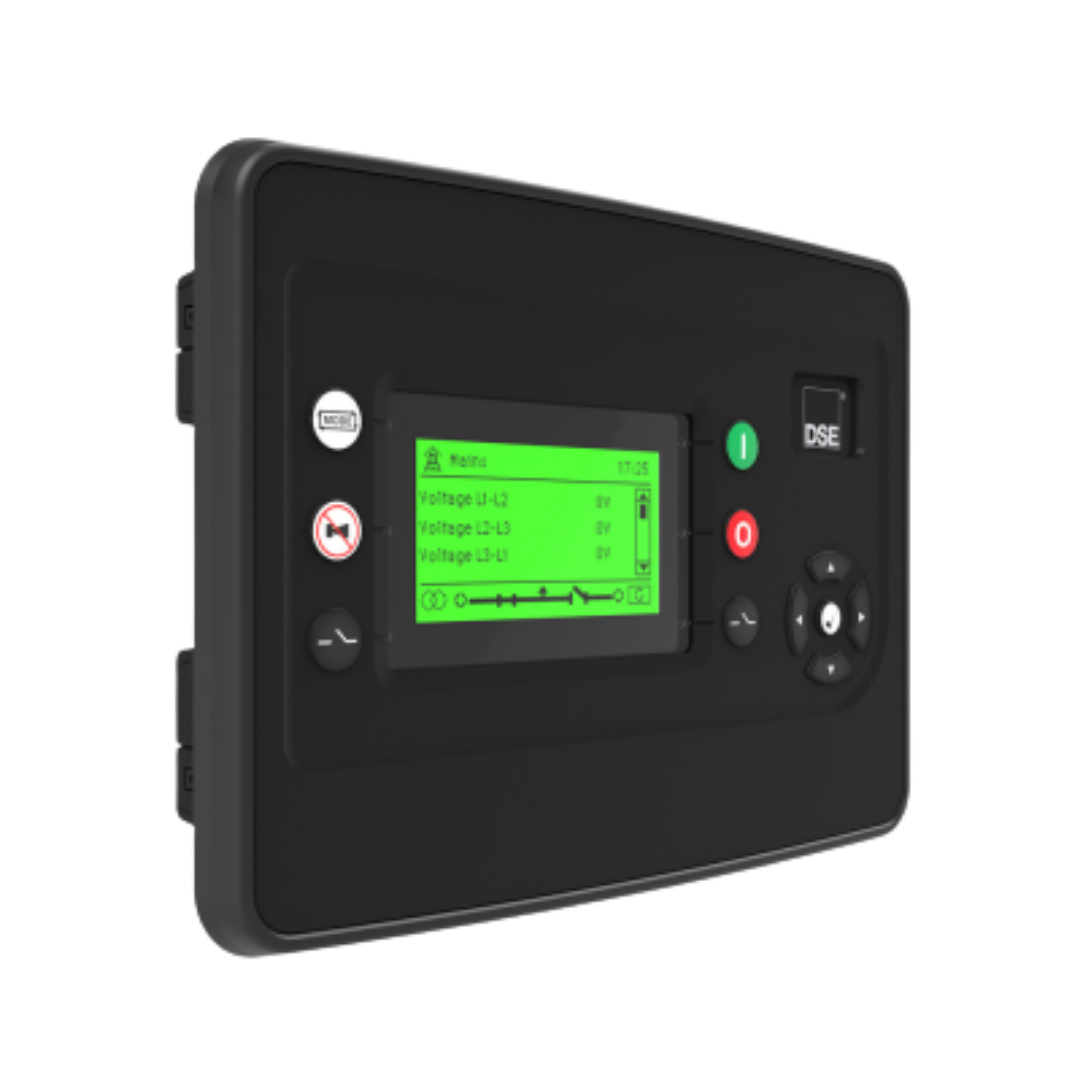

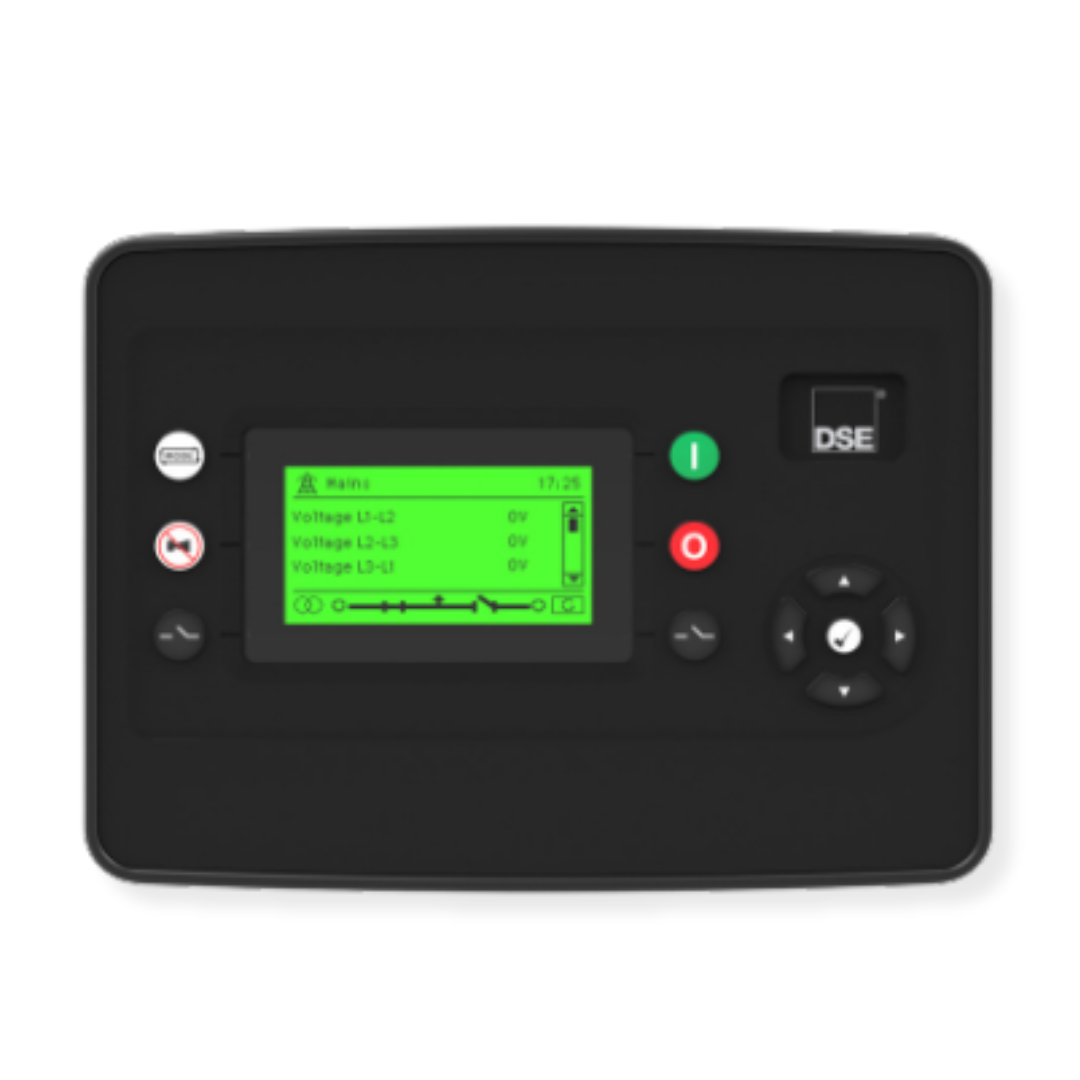

DSEG7300 Advanced Single Genset Controller

The DSEG7300 can be configured for use as an auto start controller and an auto mains (utility) failure controller suitable for a wide variety of single, diesel or gas, genset applications. Monitoring an extensive number of engine parameters, the controller displays warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs and remote PC. The DSEG7300 can also monitor the mains (utility) supply.

The controller includes USB and RS485 as well as dedicated DSENet® terminals for system expansion. The controller is compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to meet the most demanding industry requirements.

The list of features includes enhanced event and performance monitoring, remote communications and PLC functionality. Dual mutual standby is available using RS485 communications. This provides for a simpler and more convenient installation with more advanced features such as true hours balancing.
