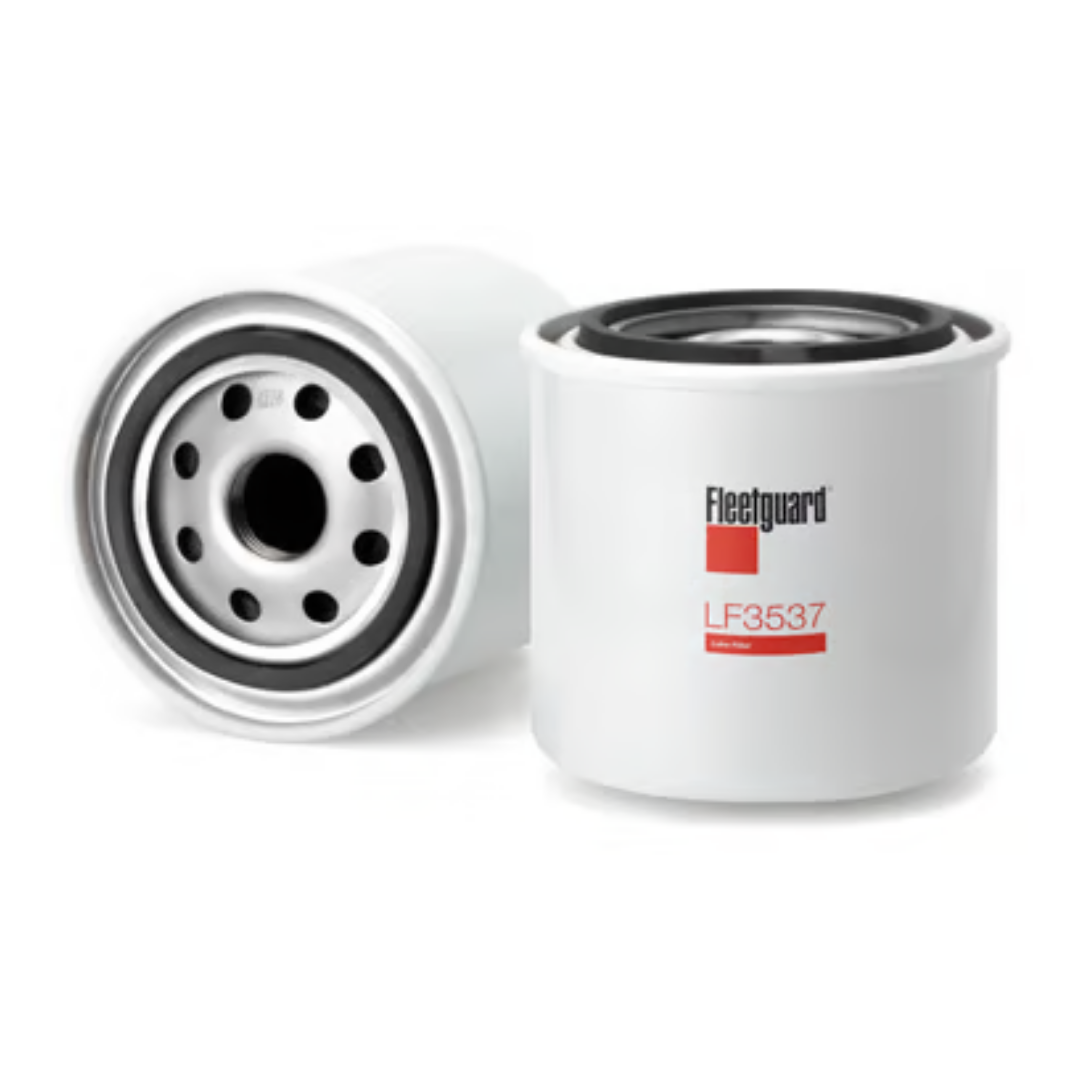

Fleetguard LF3537 | Lube Filter

Fleetguard® LF3537 spin-on lube filter meets or exceeds OE performance requirements and the new challenges of modern engine technology. Engineered by Fleetguard (a Cummins brand) to meet strict original equipment (OE) standards, this premium spin-on oil filter offers outstanding filtration efficiency and robust component protection.

Cross-Reference & Compatibility

• AP Lockheed: LK-3837
• Caterpillar: 1992239
• Chrysler: MB135737
• Daewoo: D460903
• Fram: PH-3985, PH7317
• Generac Corp: 0A4531A244
• Mitsubishi: MD-135737
• Orenstein & Koppel: 1457011
• Sakura: C-1011

Designed with a high-grade 30-micron filtration system, the LF3537 effectively captures harmful contaminants while maintaining stable oil flow and pressure, preventing premature engine wear and extending service life.

Technical Specifications

• Filter Type: Spin-On Lube Filter
• Overall Height: 81.03 mm (3.19 in)
• Largest Outer Diameter (OD): 80.52 mm (3.17 in)
• Seam Outer Diameter (OD): 84.07 mm (3.31 in)
• Gasket Outer Diameter (OD): 64.01 mm (2.52 in)
• Gasket Inner Diameter (ID): 57.40 mm (2.26 in)
• Thread Size: M20 X 1.5-6H INT
• Bypass Valve (BPV) Setting: 76 kPa (11.02 PSI)
• Efficiency: 95% at 30 Microns (TWA)
• Standpipe: No

Premium Features & Benefits

• High Efficiency Filtration: Features a 95% efficiency rating at 30 microns to shield critical engine parts from microscopic debris and grit.

• Integrated Bypass Valve: Built-in 76 kPa bypass valve ensures consistent oil delivery to the engine even during cold starts or high-viscosity conditions.

• Compact, Rugged Design: Designed to withstand high pressure drops and vibration, ensuring leak-free performance throughout your service interval.
