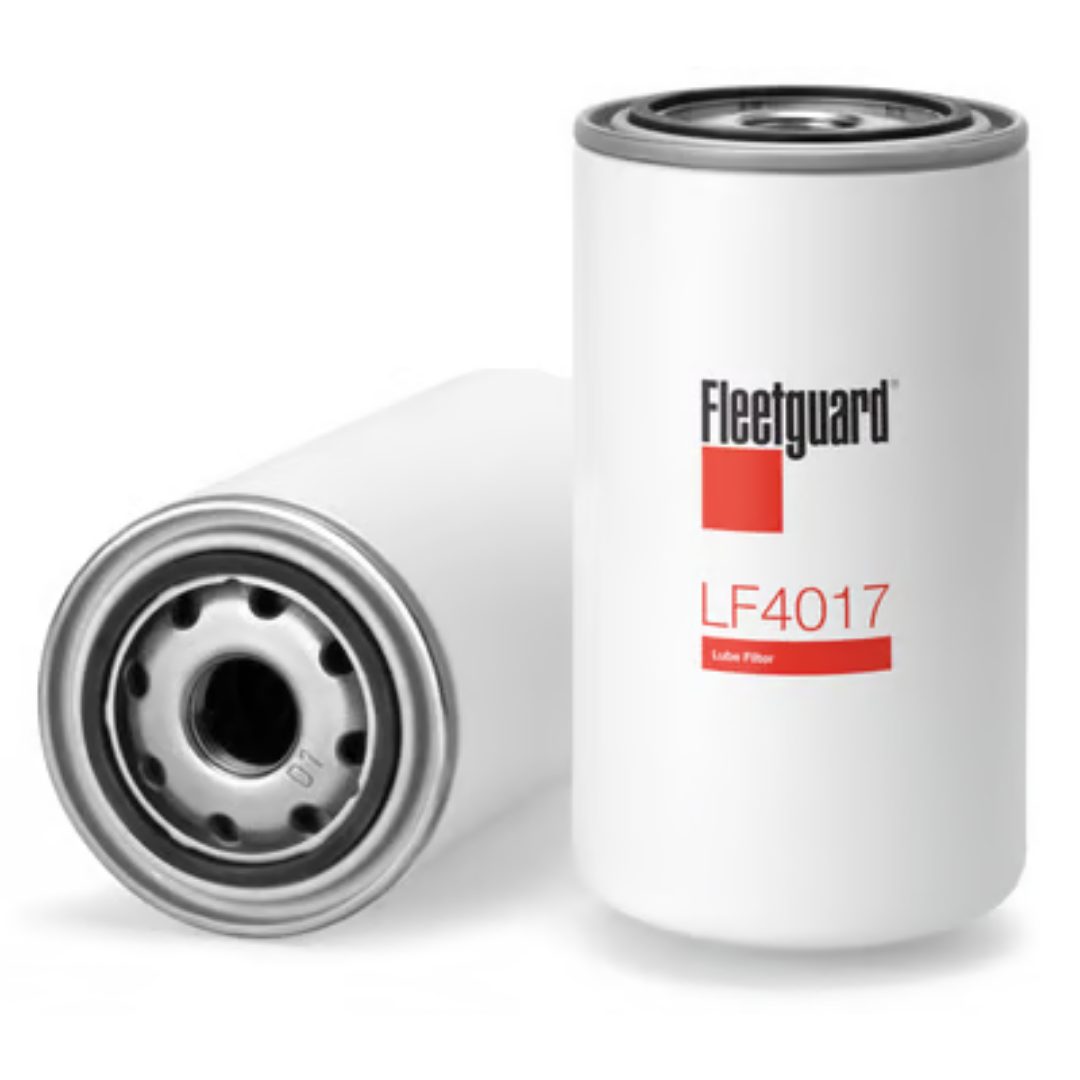

Fleetguard LF4017 | Lube Filter

Fleetguard® LF4017 spin-on lube filter meets or exceeds OE performance requirements and the new challenges of modern engine technology. Engineered by Fleetguard (a trusted Cummins brand) to strict original equipment (OE) standards, this premium spin-on oil filter provides reliable filtration and robust protection against premature engine wear.

• AC Delco: PF2207, X-12
• Air Refiner: PL-4017
• Alco: SP811
• Alsthom: 1400318
• AP Lockheed: AP-1172, AP-81400A
• Atlas Copco: 9709-0007-35
• Baldwin: B-975
• Bosch: 451203002
• Fram: PH-2829
• Wix: 423135

• Filter Type: Spin-On Lube Filter
• Overall Height: 174.00 mm (6.85 in)
• Largest Outer Diameter (OD): 93.50 mm (3.681 in)
• Seam Outer Diameter (OD): 93.50 mm (3.681 in)
• Gasket Outer Diameter (OD): 70.00 mm (2.756 in)
• Gasket Inner Diameter (ID): 62.00 mm (2.441 in)
• Thread Size: 1-12 UNF-2B
• Bypass Valve (BPV) Setting: 120 kPa (17.4 PSI)
• Efficiency: 75% at 30 Microns (TWA)
• Standpipe: No

• Optimized Engine Protection: Delivers a 75% efficiency rating at 30 microns to clear out engine-damaging debris and grit before it reaches critical components.
• Integrated Bypass Valve: The built-in 120 kPa bypass valve ensures a continuous, reliable flow of engine oil under high-viscosity or cold-weather conditions.
• Heavy-Duty Construction: Built to withstand pressure spikes and intense vibrations, ensuring leak-free performance throughout its entire service life.
