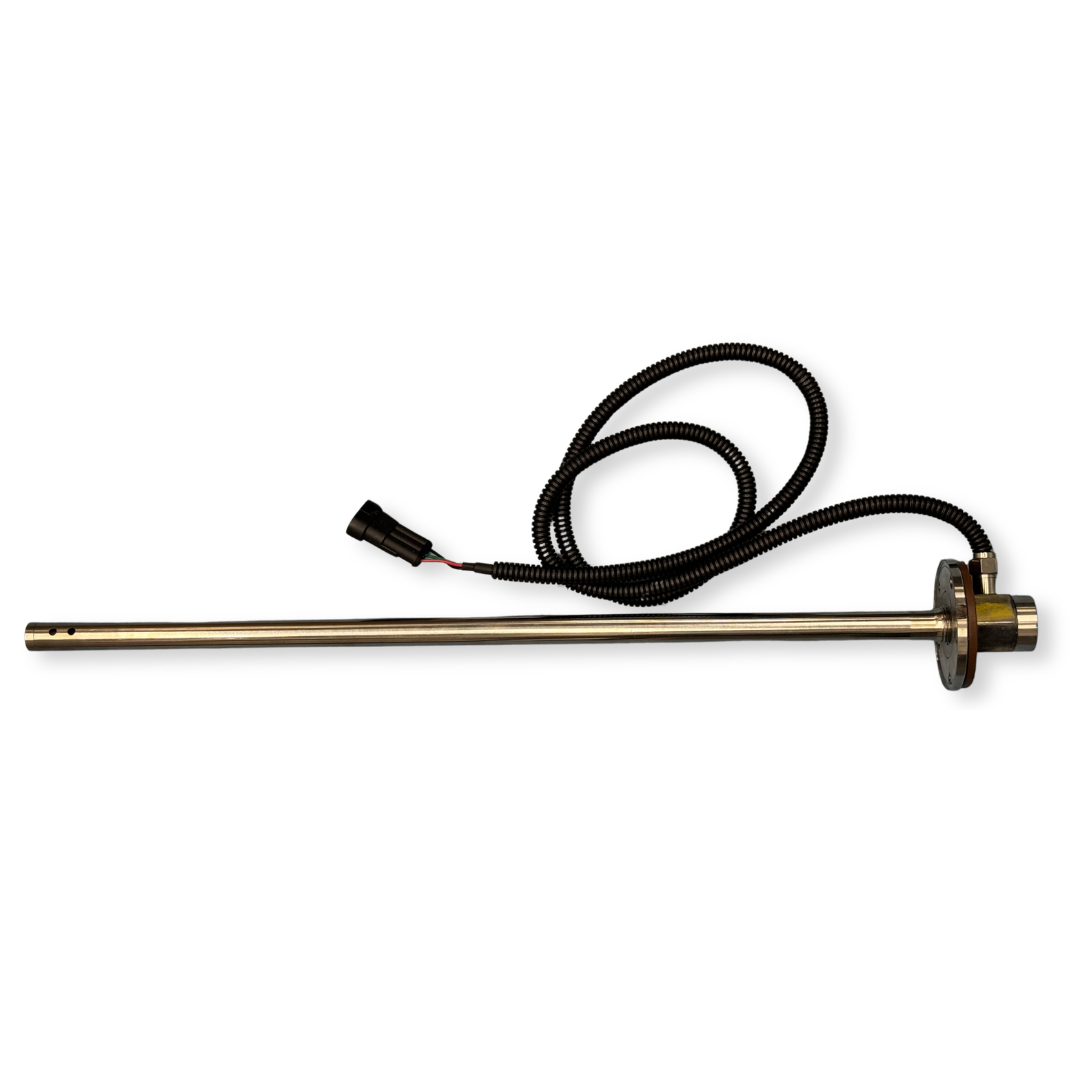

Heavy-Duty Fuel Level Sender (CR-6061-1 / 480mm / 0.8-4.5V & 4-20mA)

The CR-6061-1 Heavy-Duty Fuel Level Sender is an advanced, industrial-grade liquid level sensor engineered for high-precision fuel monitoring. Designed for maximum interface flexibility, this model supports multi-signal integration with a 3-pin voltage output (0.8-4.5V) and a highly stable 4-20mA current loop, ensuring seamless compatibility with modern telemetry units, PLCs, digital control panels, and advanced vehicle tracking systems.

With a length of 480mm and a rugged SAE 5-hole flange mount, this robust sender provides reliable, continuous depth readings in highly demanding applications including commercial truck fleets, heavy machinery, agricultural equipment, and industrial generator sets.

Key Features

• Versatile Dual-Signal Output: Outfitted with a 3-pin connector supporting a 0.8-4.5V voltage signal alongside an industrial 4-20mA output for robust, noise-immune telemetry.
• Premium Mechanical Stability: Engineered to deliver rock-solid, steady level readings despite heavy tank sloshing and equipment vibration.
• Standard SAE 5-Hole Flange: Utilizes the industry-standard 5-bolt mounting pattern for a straightforward, leak-free installation on a wide variety of fuel tanks.
• Industrial Build Quality: Specifically cross-referenced for professional deployments requiring reliable depth monitoring up to 480mm.

Technical Specifications

• Part Number: SE-FL-480
• Model / Search Code: CR-6061-1/480mm (Alternative: TLL15X series equivalent)
• Length: 480mm
• Output Signals: 0.8–4.5 V / 4–20 mA

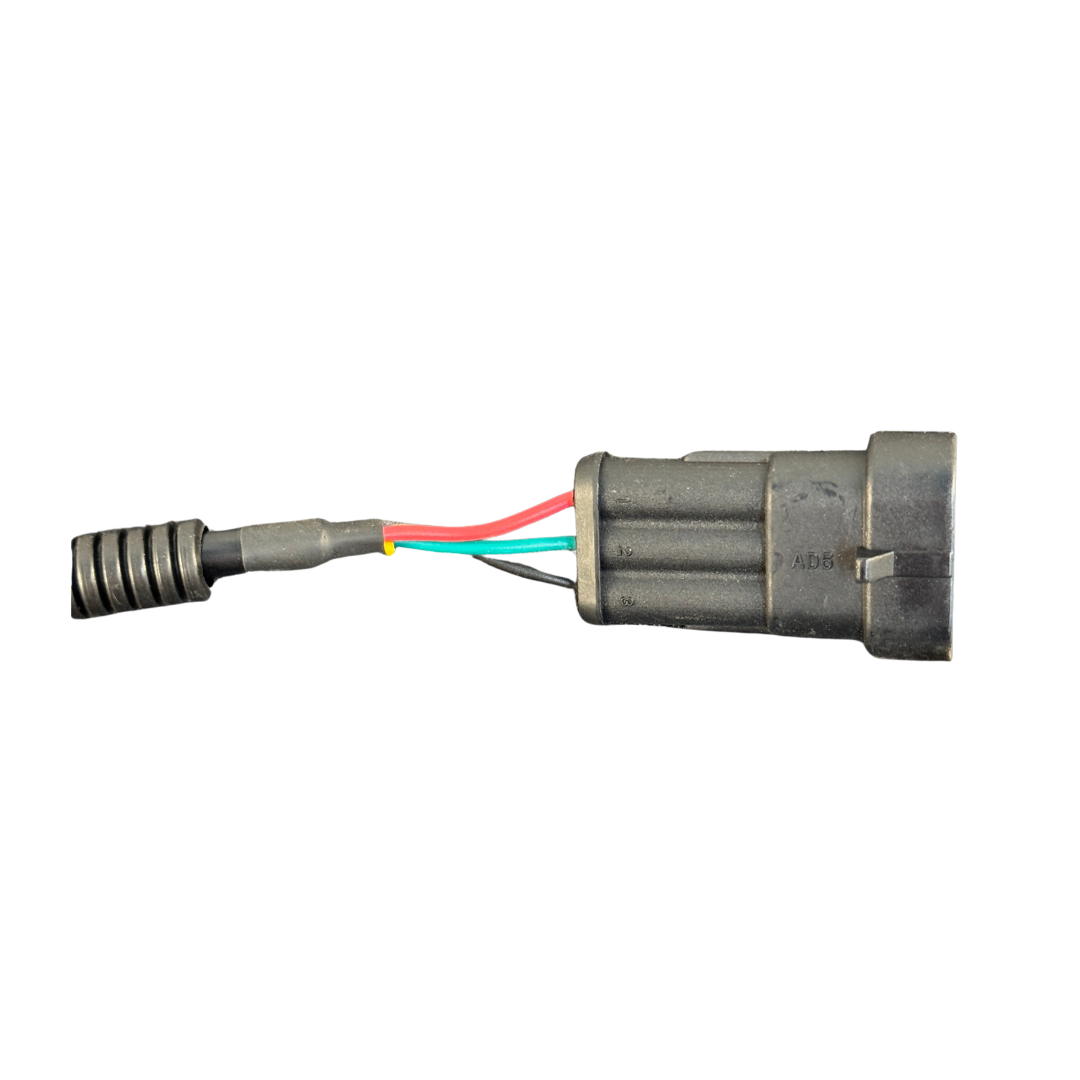

• Wiring Configuration: 3-Pin connector setup

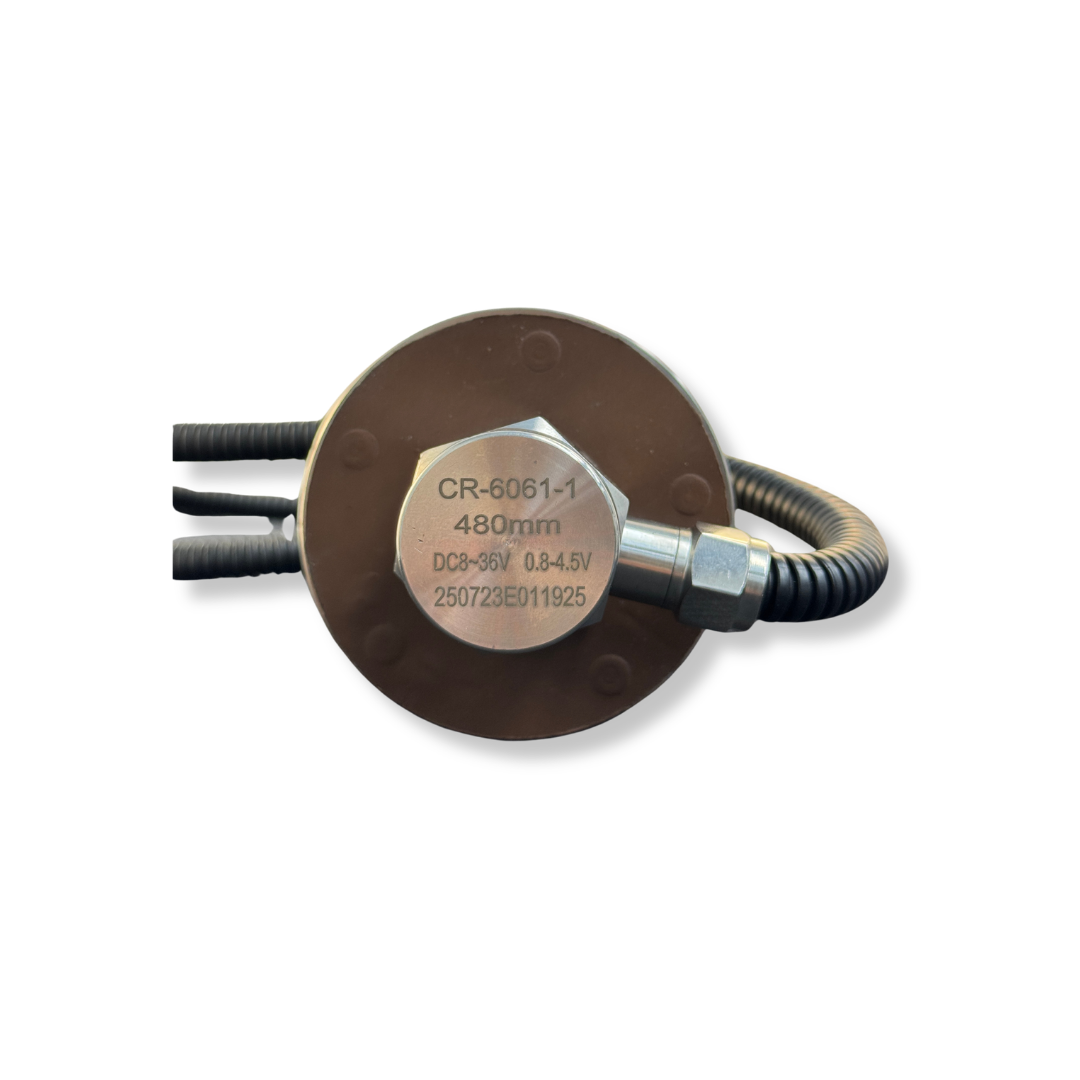

• Mounting Type: Standard SAE 5-Hole Flange Mount
• Application Compatibility: Designed for diesel, petrol, and industrial fuel tank monitoring configurations.
