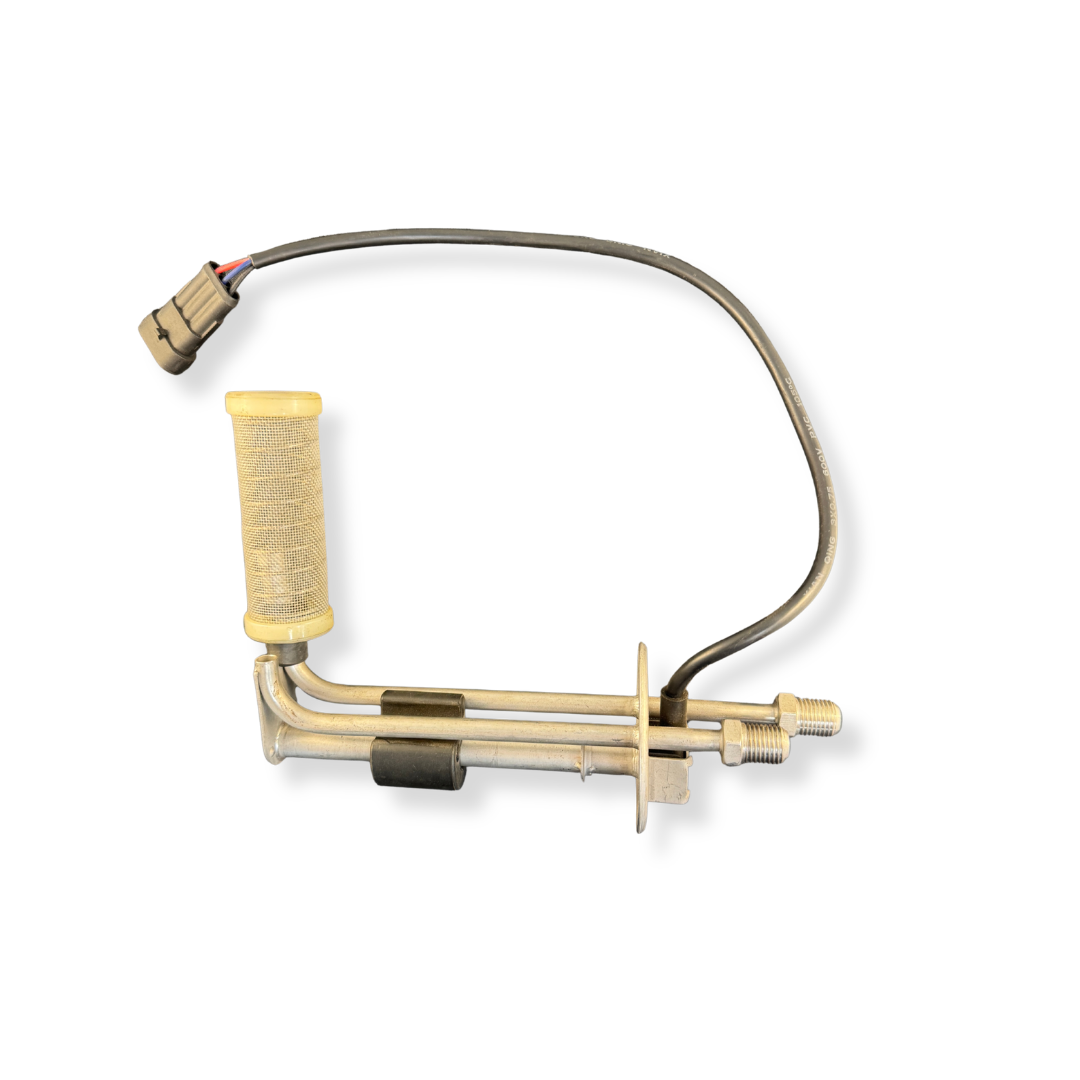

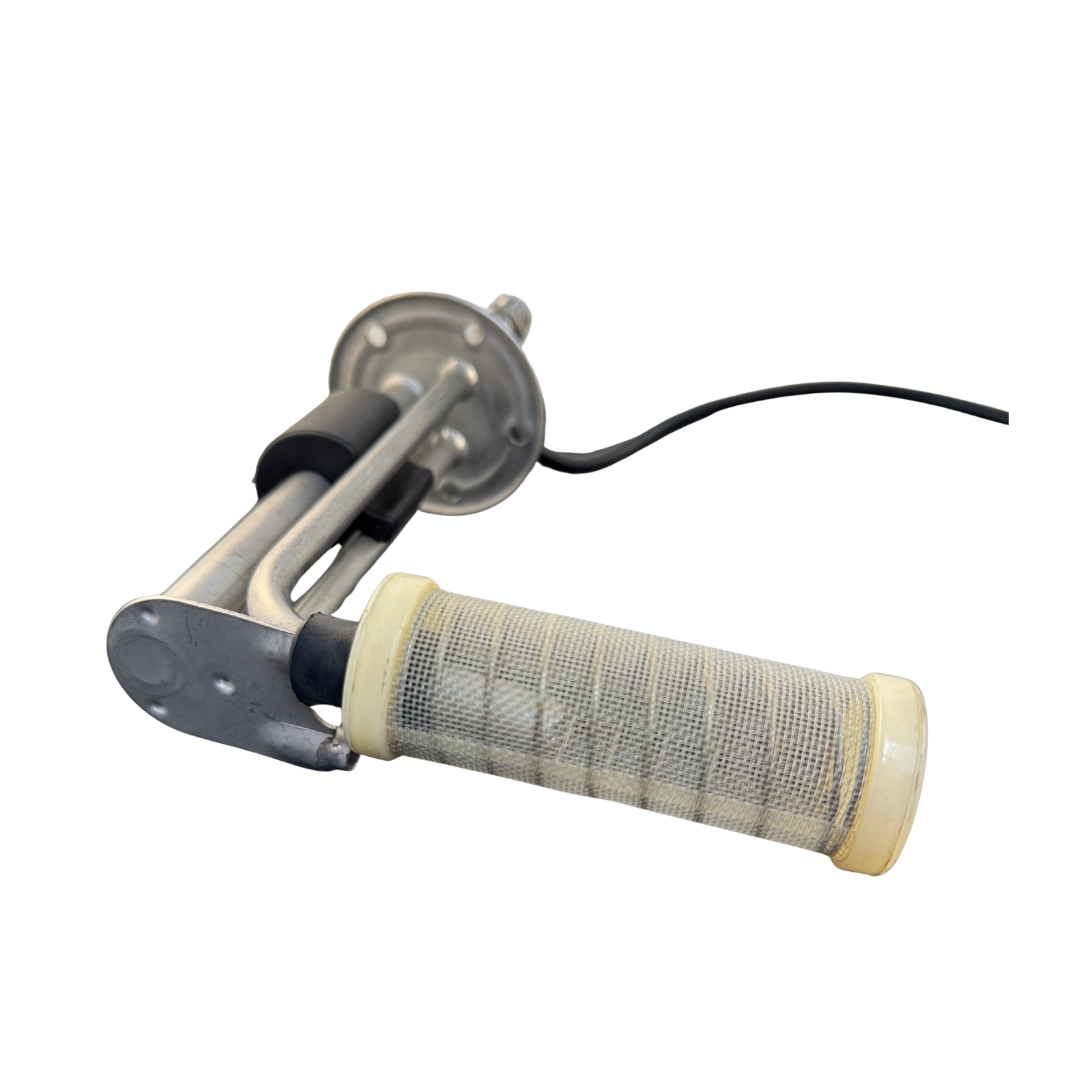

TN Series Fuel Suction & Return Tank Level Sender (SAE 5-Hole / 150mm)

The TN Series Fuel Suction and Return Tank Level Sender is a versatile, high-reliability solution engineered for simultaneous fuel pick-up, return, and liquid level monitoring. Specifically optimized for the automotive, vehicle transport, commercial trucking, and industrial generator (genset) industries, this integrated unit eliminates the need for separate tank penetrations.

Constructed from premium SUS304/SUS316 stainless steel, it utilizes an advanced reed-switch magnetic field mechanism to deliver steady, highly accurate level readings, offering exceptional resistance to heavy vibrations and harsh environmental conditions.

Key Features

• Integrated Suction & Return: Combines fuel feed, fuel return, and level sensing into a single unit, simplifying plumbing and minimizing potential leak points on your tank.
• Marine-Grade Durability: Built with high-grade SUS304/SUS316 stainless steel for maximum corrosion resistance in petrol, diesel, and water applications.
• Environmental Protection: Rated at IP67 water resistance with a wide working temperature range ($-40^\circ\text{C}$ to $+85^\circ\text{C}$) to withstand extreme operating conditions.

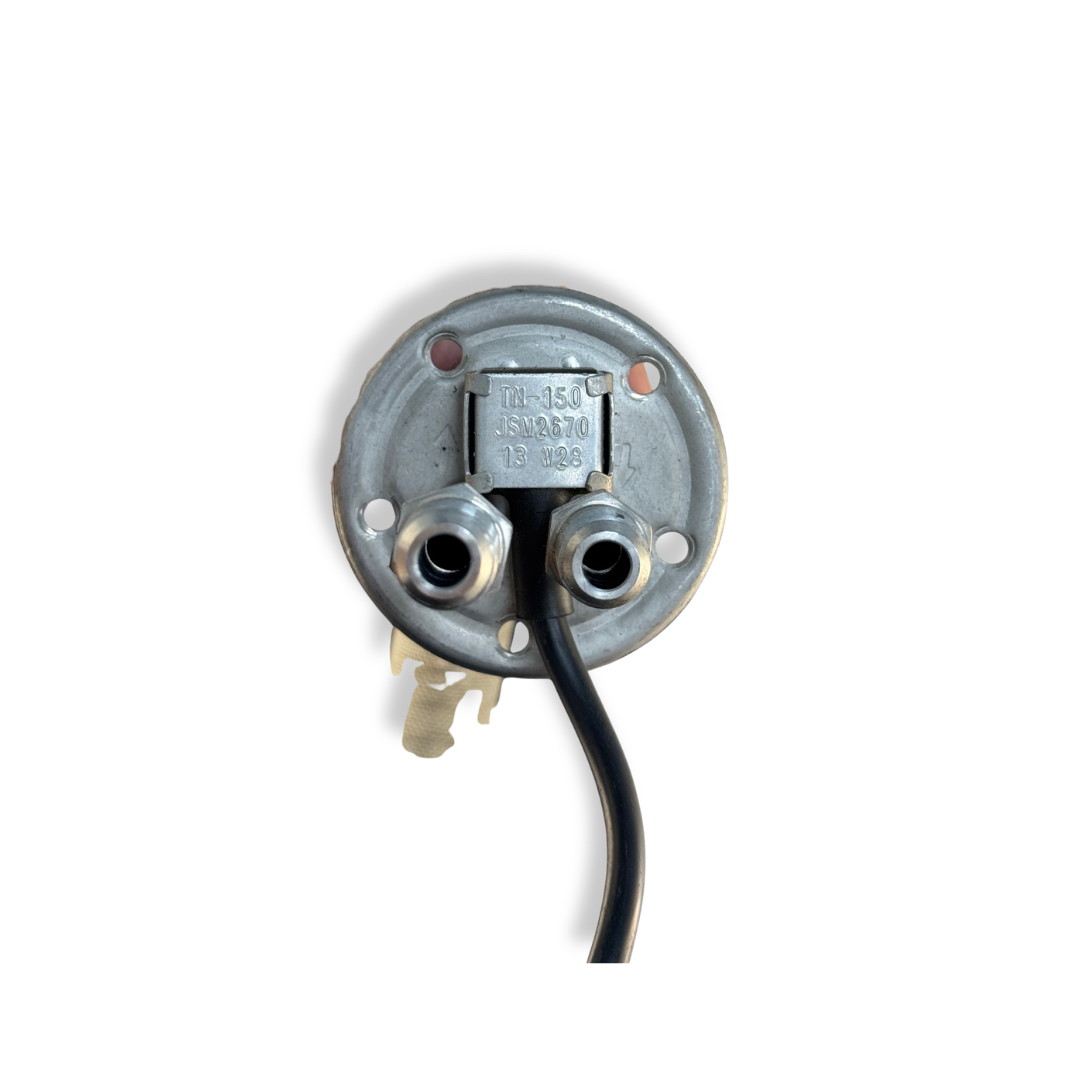

• Standard Mounting: Utilizes a standard SAE 5-hole flange mount for straightforward compatibility and a secure seal.

Technical Specifications

• Part Number: SE-FL-1000071265/150
• Model Range: TN-150mm
• Length: 150mm
• Output Signal Range: Resistance-based (0–190 $\Omega$ / 240–33 $\Omega$ industry standard)
• Resolution: 21mm

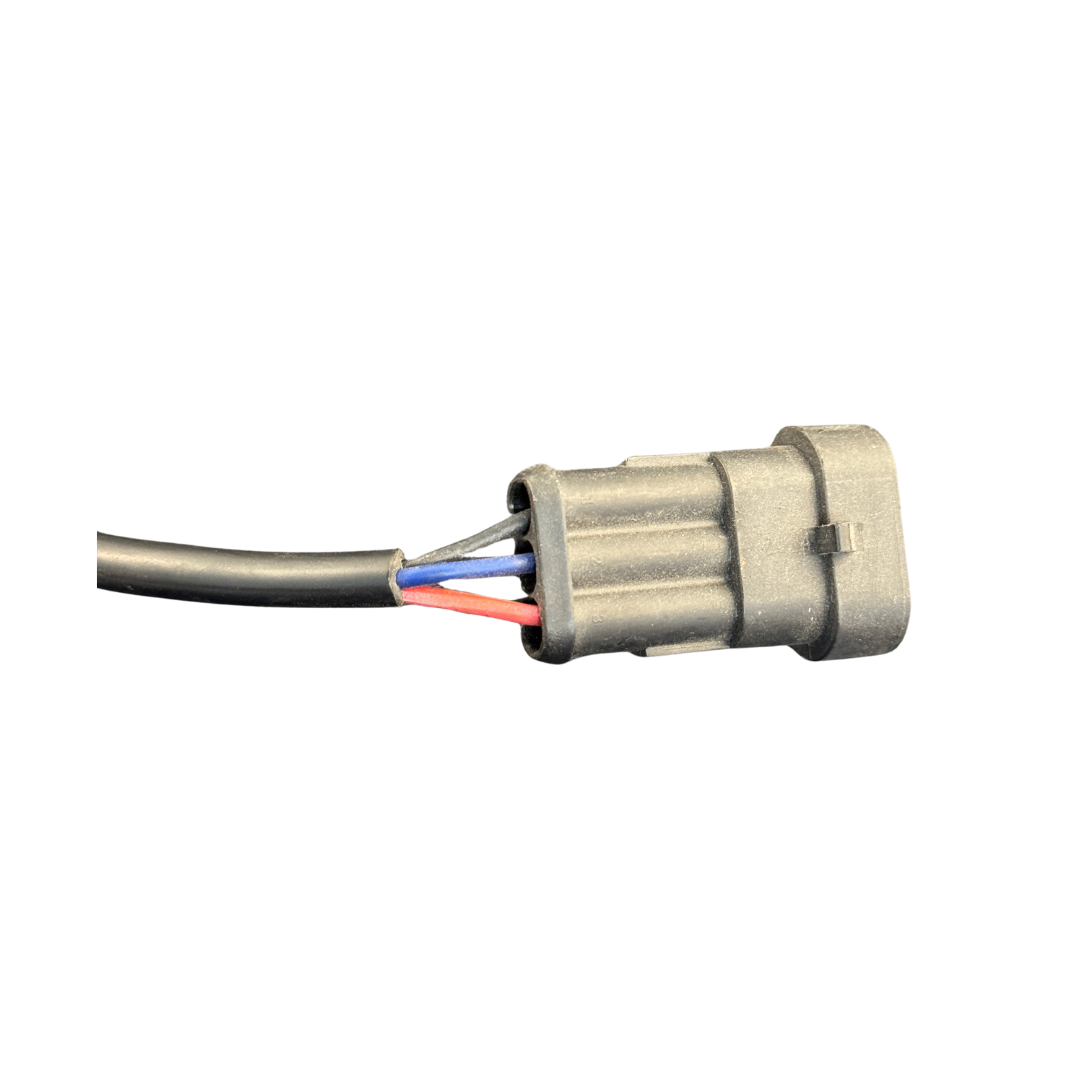

• Wire Length: 460mm
• Material: SUS304 / SUS316 Stainless Steel
• Application Compatibility: Automotive, commercial trucks, heavy vehicles, and industrial generator sets.
