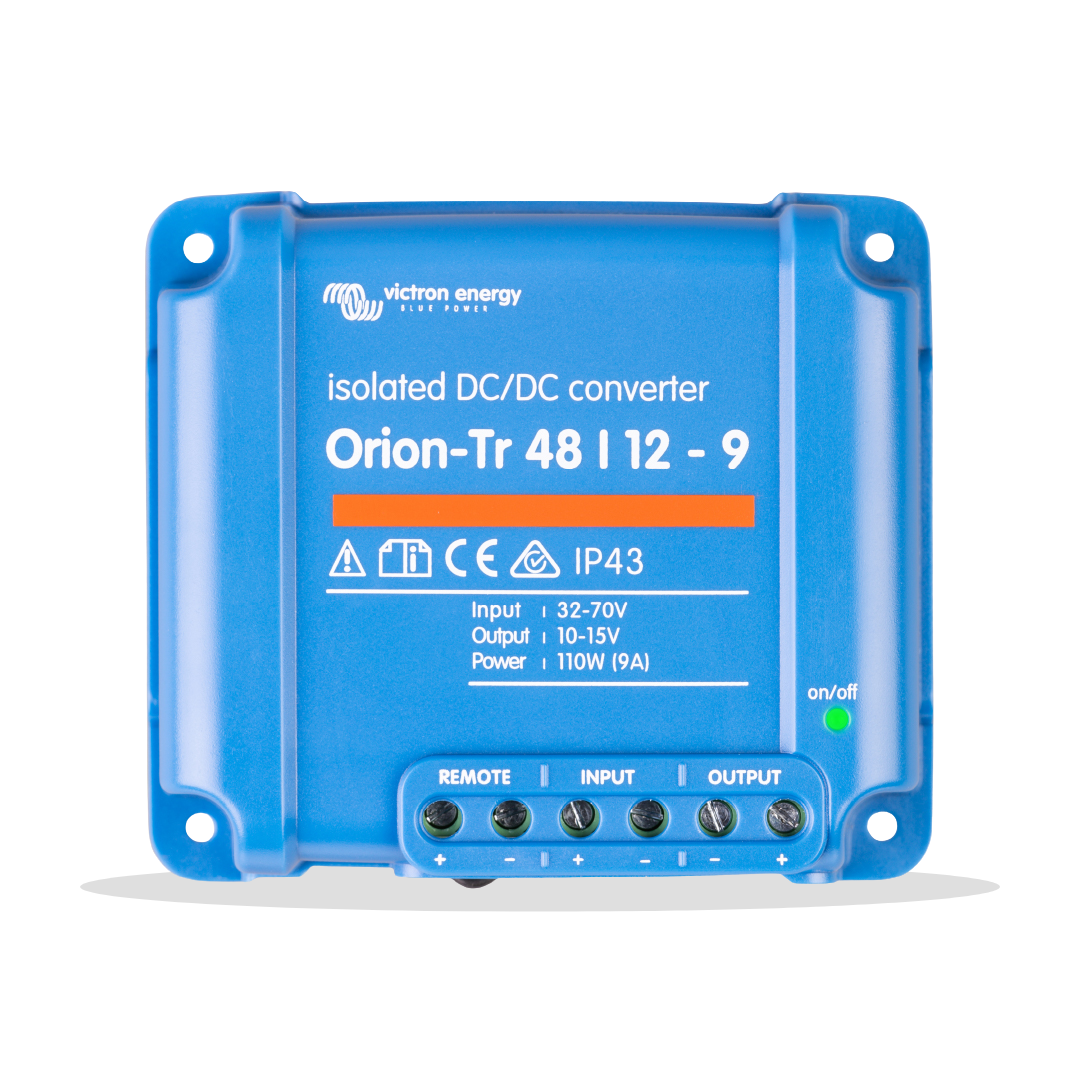

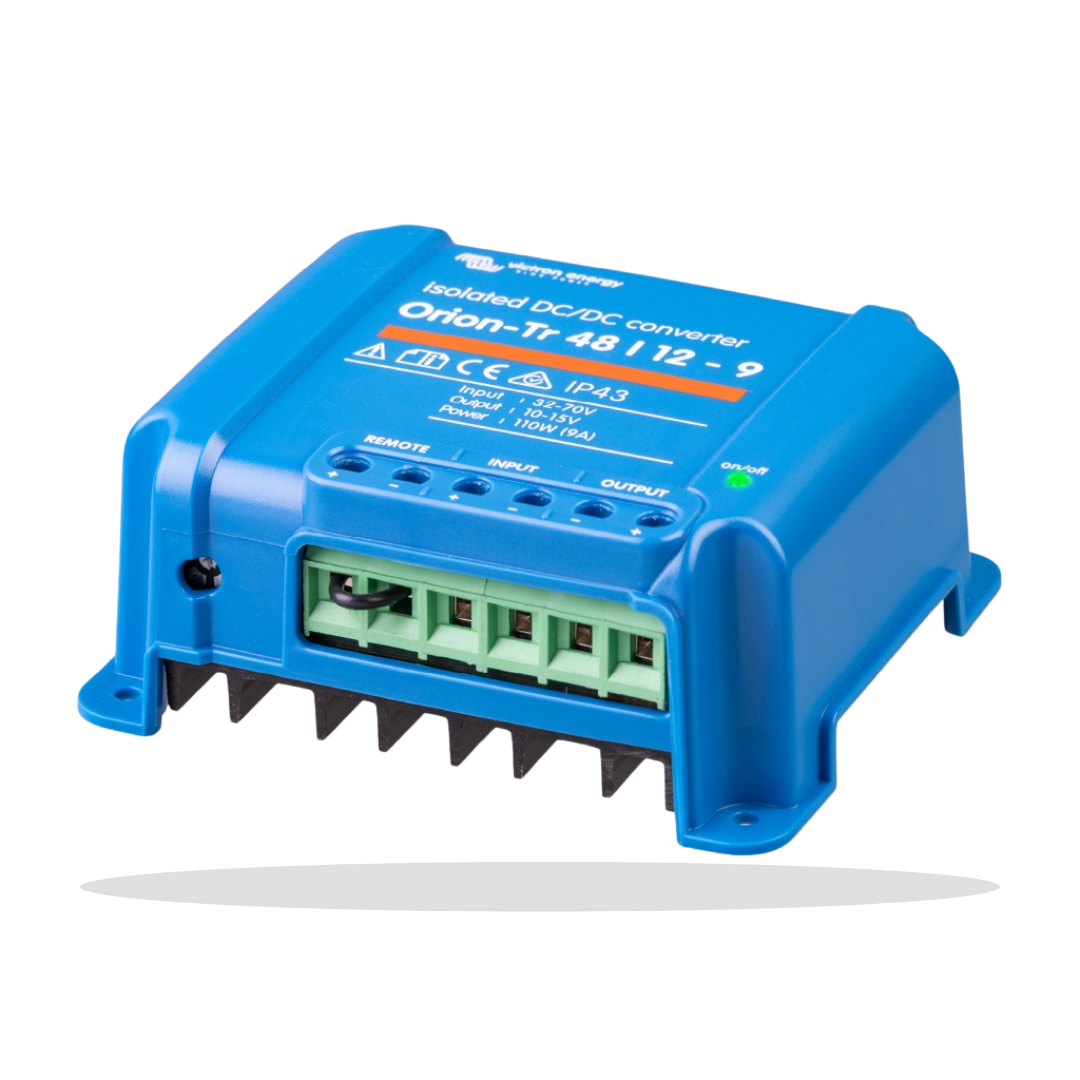

Victron Orion-Tr 48/12-9A (110W) Isolated DC-DC Converter

Step down high-voltage power safely and efficiently with the Victron Orion-Tr 48/12-9A Isolated DC-DC Converter. Designed to convert a 48V DC input down to a stable 12V DC output at up to 9 Amps (110W), this converter is ideal for powering 12V accessories, lighting, electronics, or appliances from a 48V battery bank or solar power setup.

Galvanic isolation ensures complete electrical separation between input and output circuits, protecting sensitive equipment from ground loops, electrical noise, and voltage spikes.

Key Features

• Galvanic Isolation: Completely separates the input and output electrical circuits, protecting downstream electronics from noise and power spikes.
• Remote On/Off Terminal: Eliminates the need for a heavy-duty, high-current switch on the input wiring. Control the converter using a simple low-power switch or connect it to an engine run/stop signal.
• Adjustable Output Voltage: Can be fine-tuned or used as a multi-stage battery charger to maintain a 12V starter or auxiliary battery from a 48V main system.
• IP43 Ingress Protection: Built for harsh environments—protected against spray and debris when installed with screw terminals pointing downward.
• Short-Circuit & High-Temperature Protected: Features automatic output current reduction during high ambient temperatures and full short-circuit protection for reliable operation.
• Easy Screw-Terminal Installation: Standard screw terminals mean quick installation without requiring specialized crimping or connector tools.

Technical Specifications

• SKU: ORI481210110
• Input Voltage Range: 48V Nominal (32V – 70V DC)
• Output Voltage: 12V DC (Adjustable)
• Continuous Output Current: 9A
• Continuous Output Power: 110W
• Efficiency: ~87%
• Galvanic Isolation: Yes
• Enclosure Rating: IP43 (terminals pointing down)
• Weight: 0.42 kg (approx.)

Recommended Applications

• 🚐 RVs, Campers & Motorhomes (powering 12V appliances from 48V battery systems)
• ⛵ Marine & Boats (isolating sensitive navigation gear and 12V loads)
• 🚜 Commercial & Off-Grid Systems (stepping down 48V lithium or solar setups)
• 🔋 Auxiliary Battery Charging (charging 12V starter batteries from 48V primary banks)
