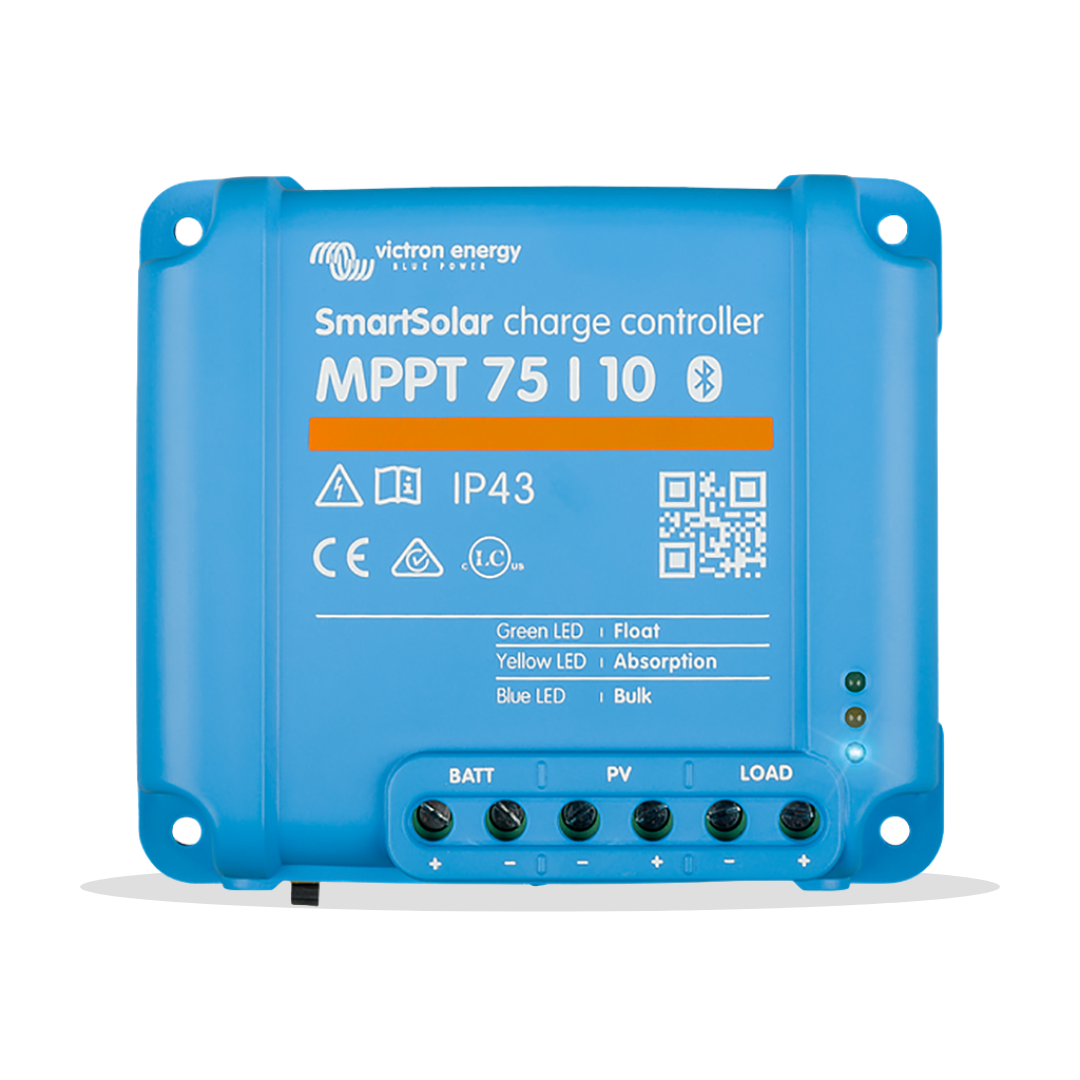

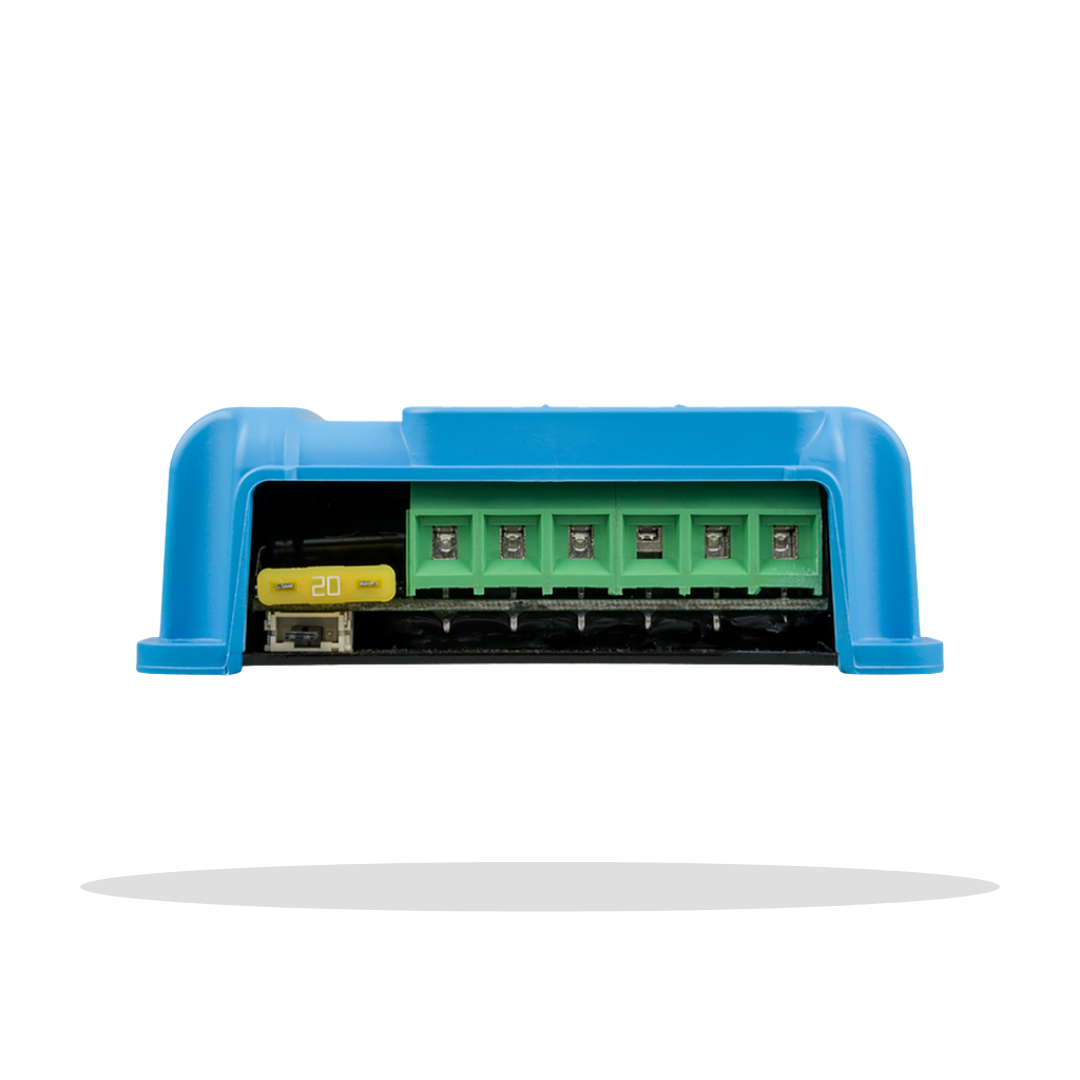

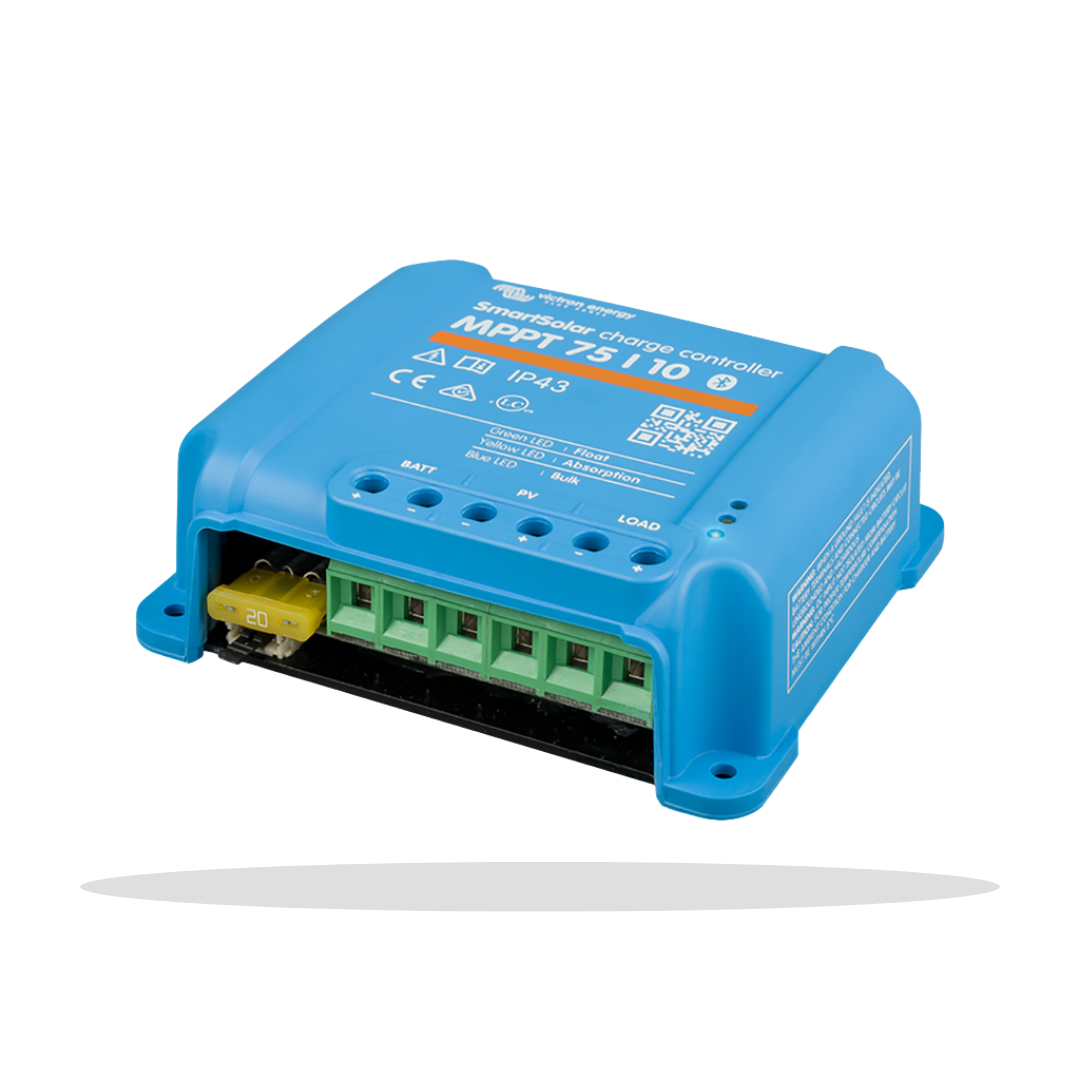

Victron SmartSolar MPPT 75/10 Solar Charge Controller

Victron SmartSolar MPPT 75/10 Solar Charge Controller

Maximize your solar harvest and extend battery life with the Victron SmartSolar MPPT 75/10. Engineered with ultra-fast Maximum Power Point Tracking (MPPT) technology, this compact charge controller continuously optimizes the energy intake from your solar panels—delivering up to 30% faster charging compared to traditional PWM controllers, especially during overcast weather.

Whether you're upgrading an RV, caravan, marine vessel, or off-grid setup, the SmartSolar 75/10 offers seamless power management and wireless monitoring right from your phone.

Key Features

• Ultra-Fast MPPT Technology: Maximizes energy harvest even under continuously changing light conditions and cloudy skies.
• Built-in Bluetooth Smart: Monitor, update, and program your system wirelessly using the VictronConnect app on iOS, Android, or Mac/PC—no external dongle required.
• Intelligent BatteryLife Management: Prevents premature lead-acid battery failure by monitoring charge states and ensuring regular 100% full charges.
• Smart Load Output: Prevents battery over-discharge by automatically disconnecting loads when voltage drops below a safe threshold.
• VE.Direct Communication Port: Allows for a reliable wired data connection to PC displays, Color Control panels, or external controllers.
• Fully Programmable: Flexible charge algorithms compatible with Lead-Acid (AGM/Gel) and Lithium batteries.

Specifications

• Model: SCC075010060R
• System Voltage: 12V / 24V Auto Select
• Rated Charge Current: 10A
• Max Solar Voltage (PV): 75V
• Max PV Input (12V System): 145W
• Max PV Input (24V System): 290W
• Peak Efficiency: 98%
• Dimensions: 100 x 113 x 40 mm
• Weight: 0.5 kg

What’s Included

• 1x Victron SmartSolar MPPT 75/10 Charge Controller
• User & Installation Manual

Ideal Applications

• 🚐 Caravans & RVs
• ⛵ Boats & Marine Vessels
• 🏡 Off-Grid Cabins & Tiny Houses
• 🔋 Portable Power Stations
